DP-15BAT-D

Name: DP-15BAT-D PumpCatalog Yamada
Brand: Yamada
SKU: DP-15BAT-D
Price: 1160.00 USD
Availability: InStock

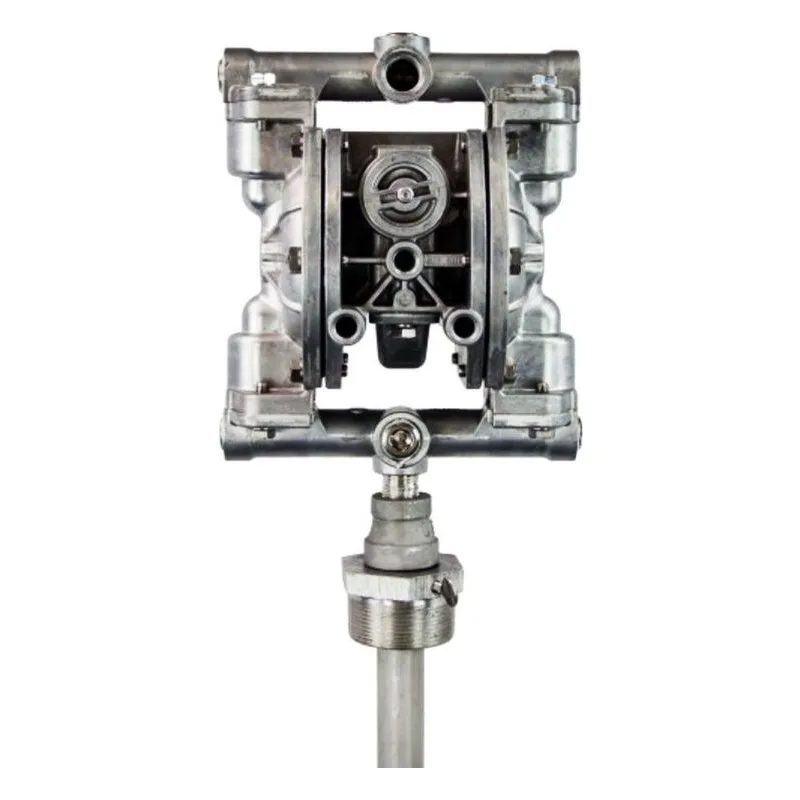

Yamada America DP-15BAT-D DP-15 Series Air Operated Double Diaphragm Drum Pump, Model Number G15AT-D. Aluminum Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 13.5 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

Brand: Yamada

Series:

Drum Pumps

Item: DP-15BAT-DModel #: G15AT-D

$1,160.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link

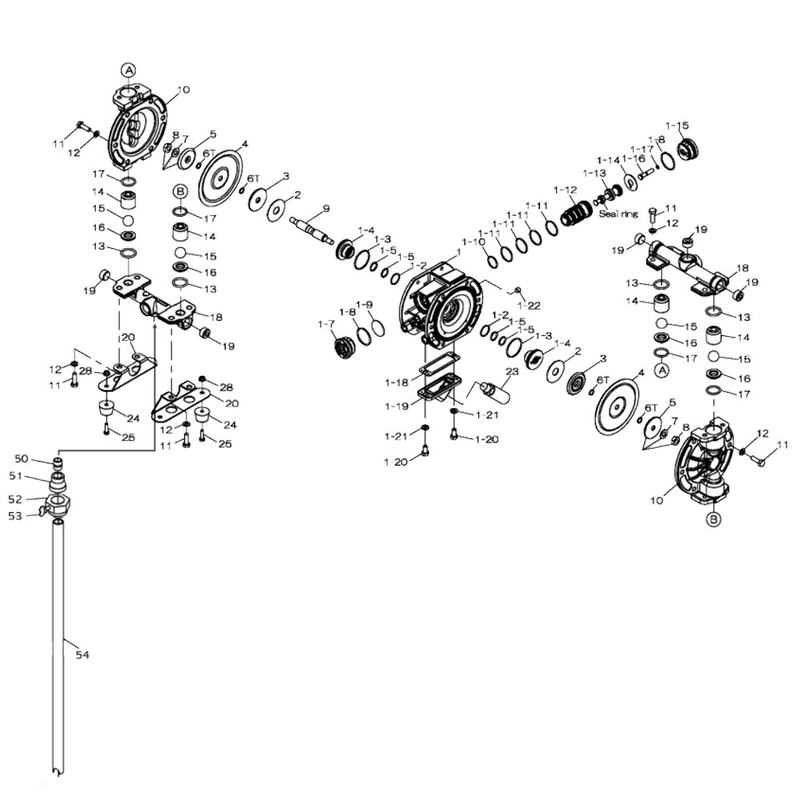

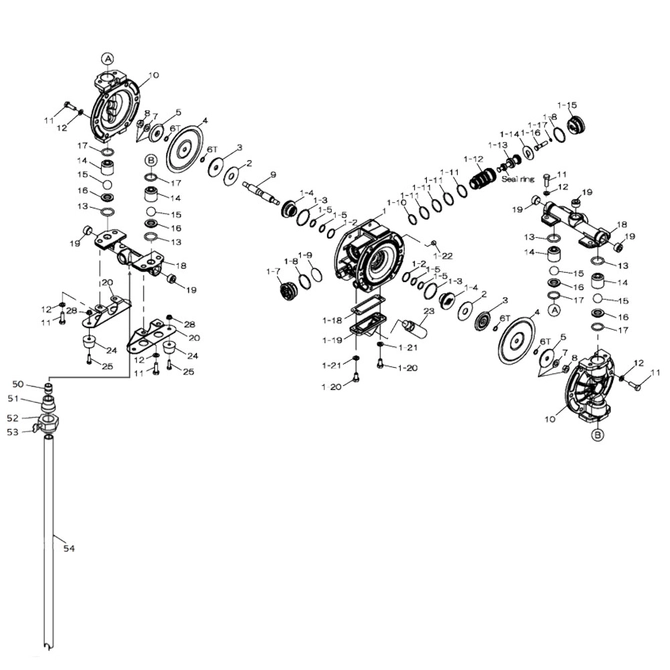

Data Sheets	G15AN-D Exploded View Parts Listing	View
Installation & Operation Manuals	Yamada Drum Pump Specifications	View

Series Information

Drum Pumps Information

Features & Benefits

Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM.

Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada.

Port Dimensions
Intake & discharge connection:
Aluminum (ADC-12) 3/8" or 3/4" Female NPT
Includes Aluminum Male NPT, Bung adapter and suction pipe

Stainless Steel (316) 3/8" or 3/4" Female NPT
Includes Stainless Steel Male NPT, Bung adapter and suction pipe

Polypropylene (PPG) 1/2" or 3/4" Female NPT
Includes PVC suction pipe, elbow, & Bung adapter (PPG also available)

Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps.

Kynar® (PVDF) 1/2" Female NPT
Includes PVDF suction pipe, elbow, and Bung adapter
Drum inlet connection 2" Bung
