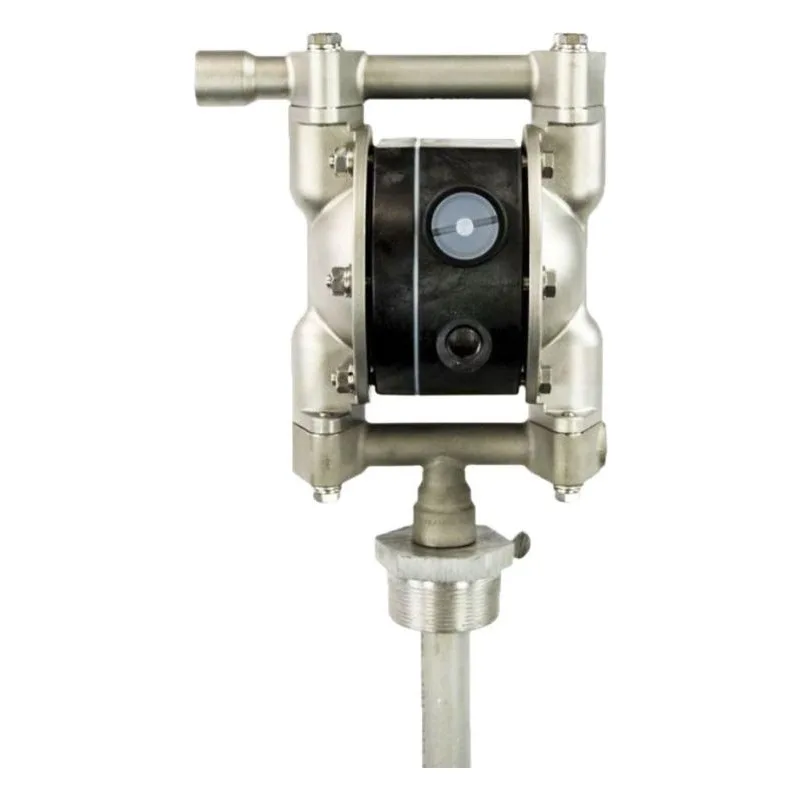

NDP-15BSN-D

Drum pumps are available in 3/8", 1/2", and 3/4" port sizes. (3/8" metal only & 1/2" plastic only) with flow rates up to 28 GPM.

Note: NDP-15 and NDP-20 plastic pumps utilize side ports with a 90° elbow atop the drum. Due to their weight, aluminum and stainless steel pumps utilize center ports to help maintain pump balance. Refer to DP-10, NDP-15 & NDP-20 technical information for additional performance data. When ordering, use applicable NDP nomenclature, adding a “D” at the end of the model number. Other sizes and materials are available, consult Yamada.

Port Dimensions
Intake & discharge connection:
Aluminum (ADC-12) 3/8" or 3/4" Female NPT
Includes Aluminum Male NPT, Bung adapter and suction pipe

Stainless Steel (316) 3/8" or 3/4" Female NPT
Includes Stainless Steel Male NPT, Bung adapter and suction pipe

Polypropylene (PPG) 1/2" or 3/4" Female NPT
Includes PVC suction pipe, elbow, & Bung adapter (PPG also available)

Note: Yamada recommends utilizing flat-type check valves for the NDP-15 series polypropylene pumps.

Kynar® (PVDF) 1/2" Female NPT
Includes PVDF suction pipe, elbow, and Bung adapter
Drum inlet connection 2" Bung
