NDP-80BST-FDA

Name: NDP-80BST-FDA PumpCatalog Yamada
Brand: Yamada
SKU: NDP-80BST-FDA
Price: 17065.00 USD
Availability: OutOfStock

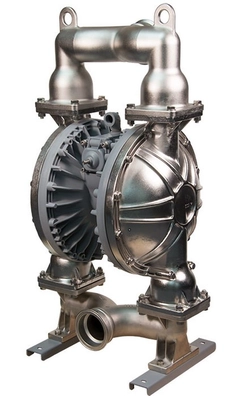

Yamada America NDP-80BST-FDA NDP-80 Series FDA Compliant Air Operated Double Diaphragm Pump, Model Number 852651-FDA. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Grey PTFE Coated Air Motor. 3" Tri-Clamp Inlet & Outlet, 4" Sanitary Clamp, 215 GPM Flow Rate, Passes up to 13/32" (10mm) Solids.

Brand: Yamada

Series:

FDA Series

Item: NDP-80BST-FDAModel #: 852651-FDA

$17,065.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Yamada FDA Compliant Pump Brochure	View
Installation & Operation Manuals	Yamada Pumps NDP-15 Pump Specifications	View
Installation & Operation Manuals	Yamada Pumps NDP-20 Pump Specifications	View
Installation & Operation Manuals	Yamada Pumps NDP-25 Pump Specifications	View
Installation & Operation Manuals	Yamada Pumps NDP-40 Pump Specifications	View
Installation & Operation Manuals	Yamada Pumps NDP-5 Pump Specifications	View
Installation & Operation Manuals	Yamada Pumps NDP-50 Pump Specifications	View
Installation & Operation Manuals	Yamada Pumps NDP-80 Pump Specifications	View
Parts Breakdowns	NDP-80BST-FDA Repair Parts Breakdown 2020	View
Parts Breakdowns	NDP-80BST-FDA Yamada Pump Repair Parts Exploded View	View

Series Information

FDA Series Information

Features & Benefits

Key features of Yamada® FDA series pumps:
• self-priming, lube-free air valve
• intrinsically safe and portable
• no mechanical seals
• ability to run dry without pump damage

Available in eight sizes from 3/4" to 4" ports with flow ranges from 1–215 gallons per minute.

Sanitary Fitting / Flow Rate / Maximum Size Solid
NDP-5-FDA 3/4" 3.1 GPM N/A
DP-10-FDA 3/4" 6.0 GPM <1/32"
NDP-15-FDA 1" 13.5 GPM <1/32"
NDP-20-FDA 1" 31.7 GPM <1/16"
NDP-25-FDA 1-1/2" 46.2 GPM <3/16"
NDP-40-FDA 2" 107 GPM <9/32"
NDP-50-FDA 2-1/2" 164 GPM <5/16"
NDP-80-FDA 4" 215 GPM <13/32"
FDA Compliant Elastomers
Diaphragm Material Temperature
EPDM* 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)

* EDPM available only for NDP-20 and larger pumps.
