G15 Global Series

About G15 Global Series

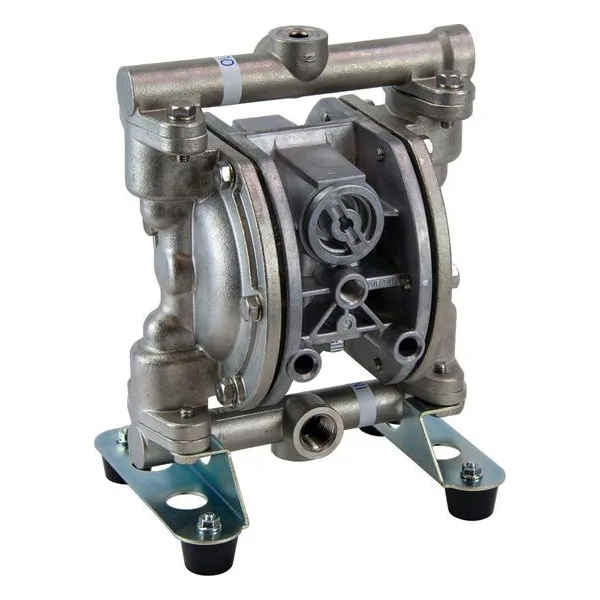

The G15 Series Stainless Steel Pumps are designed to provide maximum performance, while maintaining the reliability that you’ve grown accustomed to from Yamada. These 1/2” pumps are perfect for spraying and dispensing applications, particularly when on and off cycling reliability is critical. Utilizing our new Step Spool (S-Spool), the G15 uses up to 30% less air than the competition.

Maintenance is also a breeze with fewer removable parts.

No lubrication required
Stall Free / S-Spool Design
Fewer Wearing Parts
Ease of Repair - Quick teardown / Rebuild
30% less air consumption over competitor’s pumps
Perfect for dispensing and spraying
Critical reliability for On/Off cycling

Filters

No filters available

21 products

Yamada

854700

Yamada 854700 Diaphragm Pump, Part Type Number G15AN11, Buna-N Diaphragms, Ball Valve and O-Rings.

$735.00

Yamada

854701

Yamada 854701 Diaphragm Pump, G15 Global Series. Model Number G15AT11. PTFE Diaphragms, Ball Valve and O-Rings, Aluminum Air Motor. Repair Kit KG15-MT Available.

$875.00

Yamada

854702

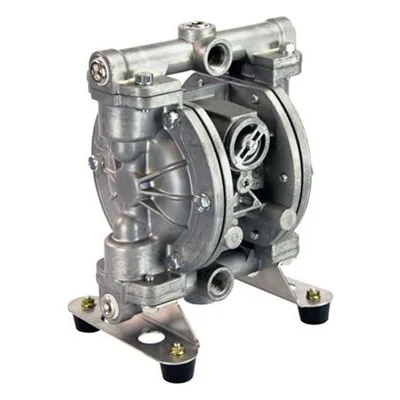

Yamada America 854702 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15AH11. Aluminum Body, Hytrel Diaphragm, Buna-N Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$735.00

Yamada

854703

Yamada 854703 G15 Diaphragm Pump, Model Number G15AS11. Santoprene Diaphragms & Ball Valve, EPDM O-Rings, Aluminum Air Motor. Repair Kit KG15-MS. & Aluminum Air Motor.

$735.00

Yamada

854734

Yamada America 854734 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15SN11. 316 Stainless Steel Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,375.00

Yamada

854735

Yamada America 854735 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15ST11. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,535.00

Yamada

854736

Yamada America 854736 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15SH11. 316 Stainless Steel Body, Hytrel Diaphragm, Buna-N Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,375.00

Yamada

854737

Yamada America 854737 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15SS11. 316 Stainless Steel Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,375.00

Yamada

854979

Yamada America 854979 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15PH11. Polypropylene Body, Hytrel Diaphragm, Buna-N Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$525.00

Yamada

854981

Yamada America 854981 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15PN11. Polypropylene Body, Buna-N Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$525.00

Yamada

854985

Yamada America 854985 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15VT11. Kynar Body, PTFE Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,045.00

Yamada

854986

Yamada America 854986 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15VS11. Kynar Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$940.00

Yamada

854987

Yamada America 854987 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15VH11. Kynar Body, Hytrel Diaphragm, Buna-N Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$940.00

Yamada

G15PN11-D

Yamada America G15PN11-D G15 Global Series Air Operated Double Diaphragm Drum Pump. Polypropylene Body, Buna-N Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 17 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$960.00

Yamada

G15PS11

Yamada America G15PS11 G15 Global Series Air Operated Double Diaphragm Pump, Model Number 854917. Polypropylene Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$525.00

Yamada

G15PS11-D

Yamada America G15PS11-D G15 Global Series Air Operated Double Diaphragm Drum Pump. Polypropylene Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 17 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$960.00

Yamada

G15PT11

Yamada America G15PT11 G15 Global Series Air Operated Double Diaphragm Pump, Model Number 854916. Polypropylene Body, PTFE Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$585.00

Yamada

G15PT11-D

Yamada America G15PT11-D G15 Global Series Air Operated Double Diaphragm Drum Pump. Polypropylene Body, PTFE Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 17 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,020.00

Yamada

G15SN11-D

Yamada America G15SN11-D G15 Global Series Air Operated Double Diaphragm Drum Pump. 316 Stainless Steel Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 14.8 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,840.00

Yamada

G15SS11-D

Yamada America G15SS11-D G15 Global Series Air Operated Double Diaphragm Drum Pump. 316 Stainless Steel Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 14.8 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,840.00

Yamada

G15ST11-D

Yamada America G15ST11-D G15 Global Series Air Operated Double Diaphragm Drum Pump. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1/2" FNPT Inlet & Outlet, 14.8 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$2,000.00
