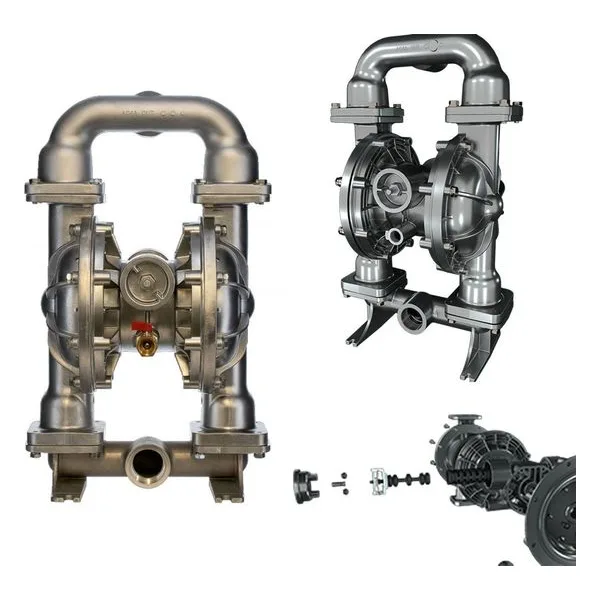

G50 Global Series

G50 Global Series Yamda Diaphragm Pumps

Interchangebility - Seeking longer life from your diaphragm pumps? The G50 is a direct drop-in replacement for existing brands, making pump change-outs easy without the need to reconfigure piping.

Lightweight - The G50 stands out as the lightest 2” aluminum pump among competitive brands, ideal for portability and placement in hard-to-reach areas.

Ease of Maintenance - Featuring the fewest total parts and the least number of wearing parts, the G50 is perfect for quick and cost-effective rebuilds.

Lube Free, Non-Stall Air Valve Technology - The G50 employs the field-proven C Spool technology from the NDP series. It never requires lubrication and is component replaceable, eliminating the need for costly assembly replacements.

Technical Specifications

• Body Material: Aluminum

• Elastomer Options: PTFE, Hytrel, Buna N, TPO

• Port Connections: 2” NPT x 2” NPT

• Air Inlet: 3/4” NPT

• Maximum Flow Rate: 193 GPM

• Air Supply Pressure: 20-125 PSI

• Operating Temperature: -40°F (-37°C) - 248°F (120°C)

• Maximum Solid Size: 5/16” (8 mm)

• Weight: 64 - 66 lbs.

• Shipping Weight: 76 lbs.

Liquid End Kits and Air Motor Kit also available along with other repair part.

Liquid End Kits

• KG50-MN

• KG50-MT

• KG50-MH

• KG50-MS

Air Motor Kit

• KG50-AM
