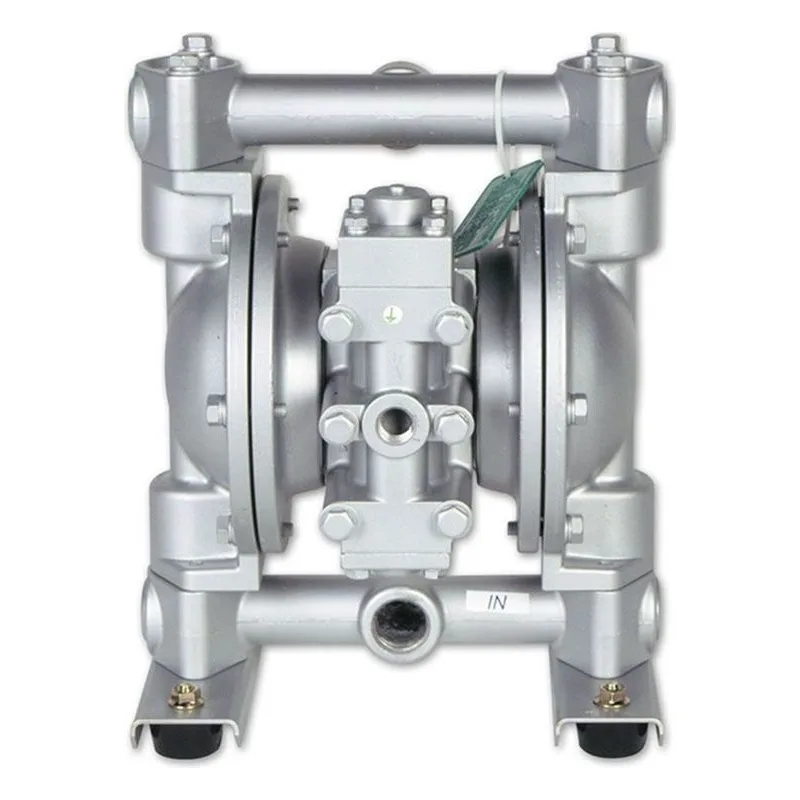

Image shown may not be actual product

NDP-25BAU

Name: NDP-25BAU PumpCatalog Yamada
Brand: Yamada
SKU: NDP-25BAU
Price: 2370.00 USD
Availability: InStock

Yamada America NDP-25BAU NDP-25 Series Air Operated Double Diaphragm Pump, Model Number 855229. Aluminum Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 1" FNPT Inlet & Outlet, 46.2 GPM Flow Rate, Passes up to 3/16" (4.8mm) Solids.

Brand: Yamada

Series:

NDP-25 Series

Item: NDP-25BAUModel #: 855229

$2,370.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	NDP-20 Operation Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-25 PP Pump Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-25 Pump Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-25 Pump Specifications	View

Series Information

NDP-25 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1" Female NPT Kynar® (PVDF) 1" Female NPT Aluminum (ADC-12) 1" Female NPT Stainless Steel (316) 1" Female NPT Cast Iron 1" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1".
