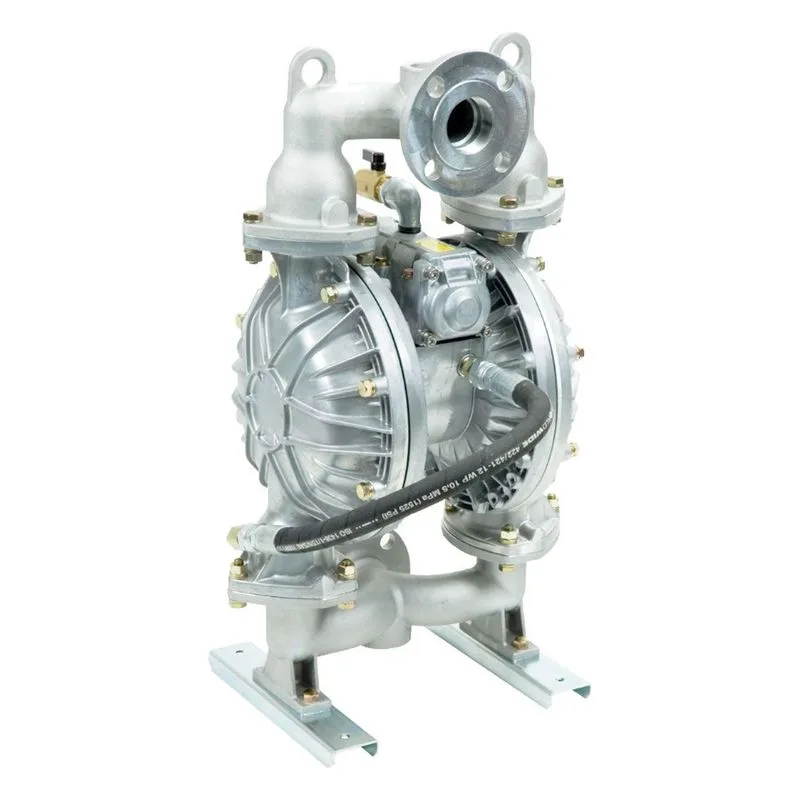

Image shown may not be actual product

NDP-40BSS-HP

Name: NDP-40BSS-HP PumpCatalog Yamada
Brand: Yamada
SKU: NDP-40BSS-HP
Price: 5625.00 USD
Availability: InStock

Yamada America NDP-40BSS-HP NDP-40 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852710-HP. 316 Stainless Steel Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 53.5 GPM Flow Rate, 180 PSI, Passes up to 9/32" (7mm) Solids.

Brand: Yamada

Series:

NDP-40 Series

Item: NDP-40BSS-HPModel #: 852710-HP

$5,625.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	NDP-20 Operation Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-40 Pump Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-40 Pump Specifications	View
Parts Breakdowns	NDP-40BSN-HP High Pressure 2:1 Diaphragm Series Repair Parts	View

Series Information

NDP-40 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1-1/2" ANSI B16.5 #150 Kynar® (PVDF) 1-1/2" ANSI B16.5 #150 Aluminum (ADC-12) 1-1/2" ANSI B16.5 #150 (with tapped 1-1/2" Female NPT) Stainless Steel (316) 1-1/2" ANSI B16.5 #150 or 1-1/2" Female NPT Cast Iron 1-1/2" Female NPT Air inlet (incl. ball valve): 1/2" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
Kynar Pumps with serial number prior to 493125 will require a kit without a "-1".

Related Products and Parts

Popular Series

Series associated to this product and brand

NDP-40BSS-HP

Brand: Yamada

Series:

NDP-40 Series

Item: NDP-40BSS-HPModel #: 852710-HP

Type

Title

Link

NDP-20 Operation Manual

View

Yamada Pumps NDP-40 Pump Manual

View

Yamada Pumps NDP-40 Pump Specifications

View

NDP-40BSN-HP High Pressure 2:1 Diaphragm Series Repair Parts

View

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 1-1/2" ANSI B16.5 #150
Kynar® (PVDF) 1-1/2" ANSI B16.5 #150
Aluminum (ADC-12) 1-1/2" ANSI B16.5 #150
(with tapped 1-1/2" Female NPT)
Stainless Steel (316) 1-1/2" ANSI B16.5 #150
or 1-1/2" Female NPT
Cast Iron 1-1/2" Female NPT
Air inlet (incl. ball valve): 1/2" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Notes

Kynar Pumps with serial number prior to 493125 will require a kit without a "-1".
