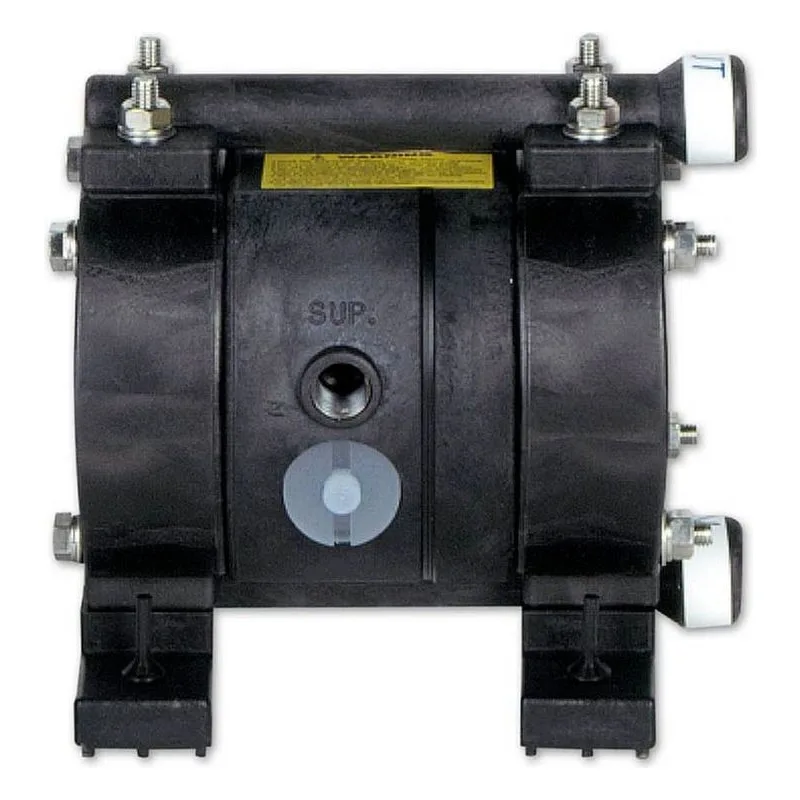

Image shown may not be actual product

NDP-5FVT-MP

Yamada America NDP-5FVT-MP NDP-5 Series Air Operated Double Diaphragm Pump, Model Number 853764. Kynar Body, PTFE Diaphragm, Flat Valve & O-Rings, Ryton Air Motor. 1/4" FNPT Inlet & Outlet, 3.4 GPM Flow Rate.

Brand: Yamada

Series:

NDP-5 Series

Item: NDP-5FVT-MPModel #: 853764

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	Yamada Pumps NDP-5 Pump Aluminum CAD Drawing	View
Installation & Operation Manuals	Yamada Pumps NDP-5 Pump Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-5 Pump PPG CAD Drawing	View
Installation & Operation Manuals	Yamada Pumps NDP-5 Pump Specifications	View
Installation & Operation Manuals	Yamada Pumps NDP-5 Pump SS CAD Drawing	View
Parts Breakdowns	Yamada Pumps NDP-5FVT Repair Parts	View

Series Information

NDP-5 Series Information

Features & Benefits
Port Dimensions Intake & discharge 1/4" Female NPT Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (internal silencer): 3/8" Female NPT Maximum Liquid Temperature Fitted with PTFE diaphragm Pump Material Temperature Groundable Acetal 180°F (82°C) Polypropylene (PPG) 180°F (82°C) Aluminum (ADC-12) 212°F (100°C) Kynar® (PVDF) 212°F (100°C) Stainless Steel (316) 212°F (100°C)
Notes
Hytrel®-fitted pumps include Hytrel® check balls & Buna N wetted o‑rings. Santoprene®-fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. K5-PT-2 (replaces K5-PT) starting Serial Number is 228480. K5-PT is still available.

Related Products and Parts

Popular Series

Series associated to this product and brand

Type

Title

Link

Yamada Pumps NDP-5 Pump Aluminum CAD Drawing

View

Yamada Pumps NDP-5 Pump Manual

View

Yamada Pumps NDP-5 Pump PPG CAD Drawing

View

Yamada Pumps NDP-5 Pump Specifications

View

Yamada Pumps NDP-5 Pump SS CAD Drawing

View

Yamada Pumps NDP-5FVT Repair Parts

View

Features & Benefits

Port Dimensions
Intake & discharge 1/4" Female NPT
Air inlet (incl. ball valve): 1/4" Female NPT
Air exhaust (internal silencer): 3/8" Female NPT

Maximum Liquid Temperature
Fitted with PTFE diaphragm
Pump Material Temperature
Groundable Acetal 180°F (82°C)
Polypropylene (PPG) 180°F (82°C)
Aluminum (ADC-12) 212°F (100°C)
Kynar® (PVDF) 212°F (100°C)
Stainless Steel (316) 212°F (100°C)

Notes

Hytrel®-fitted pumps include Hytrel® check balls & Buna N wetted o‑rings. Santoprene®-fitted pumps include Santoprene® check balls and EPDM wetted o‑rings.

K5-PT-2 (replaces K5-PT) starting Serial Number is 228480. K5-PT is still available.
