NDP-500BSTF Flange

Name: NDP-500BSTF Flange
Brand: Yamada
SKU: NDP-500BSTF FLANGE
Price: 8345.00 USD
Availability: OutOfStock

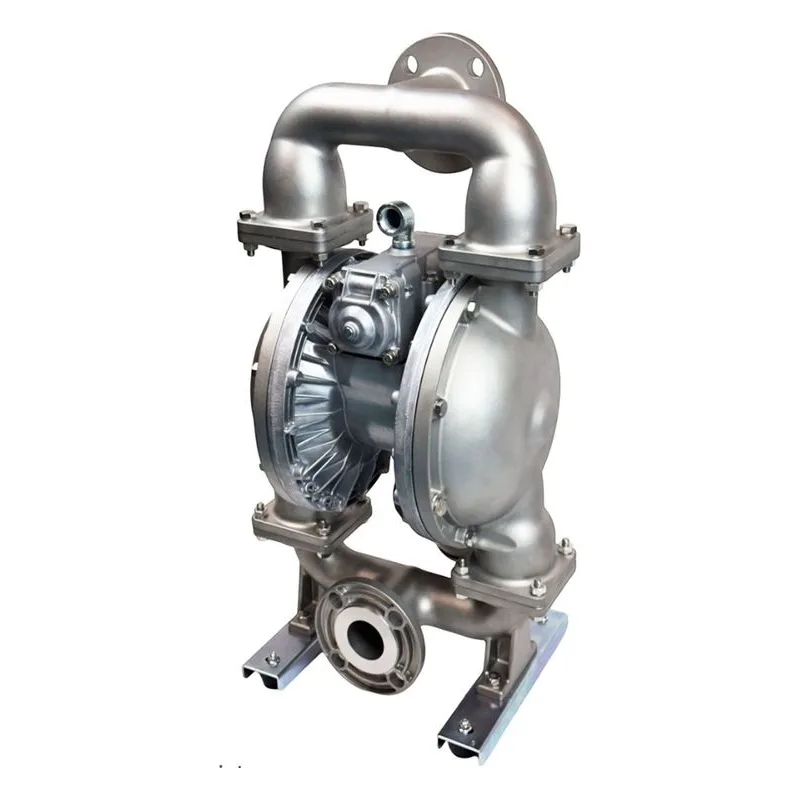

Yamada Pumps NDP-500BSTF Flange NDP-500 Series Stainless Steel Air Operated Double Diaphragm Pump, Item Number: 855393-F. 2" Suction & Discharge Connections, Full-Flow PTFE Diaphragms, PTFE Valve Balls, 226 GPM Maximum Flow, 18 Feet Max Suction Lift, Passes up to 5/16" Solids.

Brand: Yamada

Series:

NDP-50 / NDP-500 Series

Item: NDP-500BSTF FLANGEModel #: 855393-F

$8,345.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Yamada Pumps NDP-50FAN Pump Brochure	View
Installation & Operation Manuals	NDP-20 Operation Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-50 Pump Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-50 Pump Specifications	View

Series Information

NDP-50 / NDP-500 Series Information

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 2" ANSI B16.5 #150
Kynar® (PVDF) 2" ANSI B16.5 #150
Aluminum (ADC-12) 2" ANSI B16.5 #150
(with tapped 2" Female NPT)
Stainless Steel (316) 2" ANSI B16.5 #150
or 2" Female NPT
Cast Iron 2" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

* The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
