NDP-80BSE-HP-NPT

Name: NDP-80BSE-HP-NPT PumpCatalog Yamada
Brand: Yamada
SKU: NDP-80BSE-HP-NPT
Price: 12110.00 USD
Availability: InStock

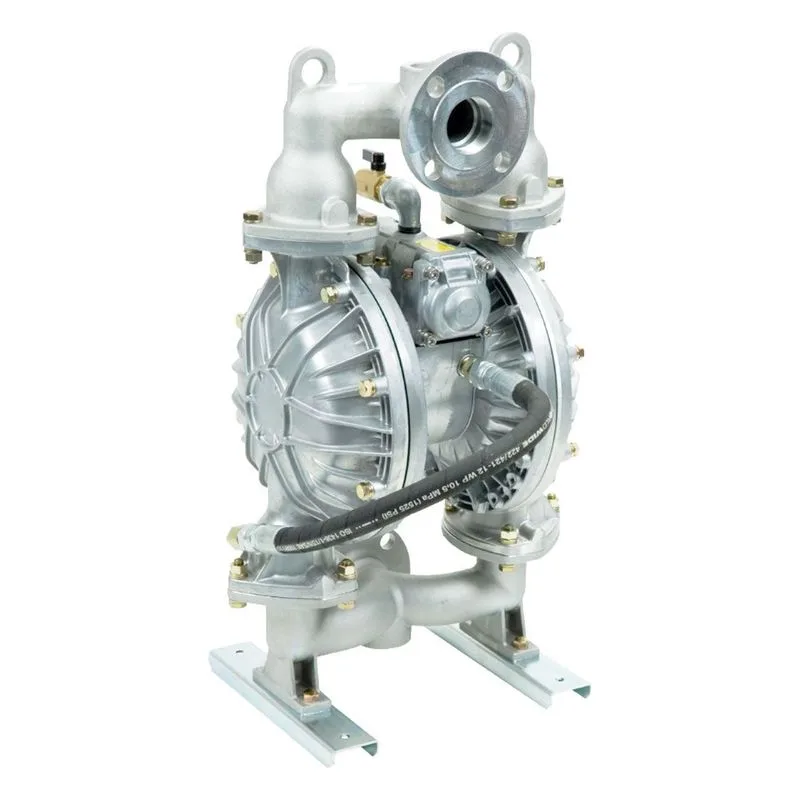

Yamada America NDP-80BSE-HP-NPT NDP-80 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852654-HP. 316 Stainless Steel Body, Nordel Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3" FNPT Inlet & Outlet, 107.5 GPM Flow Rate, 180 PSI, Passes up to 13/32" (10mm) Solids.

Brand: Yamada

Series:

NDP-80 Series

Item: NDP-80BSE-HP-NPTModel #: 852654-HP

$12,110.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	NDP-20 Operation Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-80 Pump Manual	View
Installation & Operation Manuals	Yamada Pumps NDP-80 Pump Specifications	View
Parts Breakdowns	NDP-80BSE-HP High Pressure 2:1 Diaphragm Series Repair Parts	View

Series Information

NDP-80 Series Information

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3" ANSI B16.5 #150
Aluminum (ADC-12) 3" ANSI B16.5 #150
(with tapped 3" Female NPT)
Stainless Steel (316) 3" ANSI B16.5 #150
or 3" Female NPT
Cast Iron 3" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
