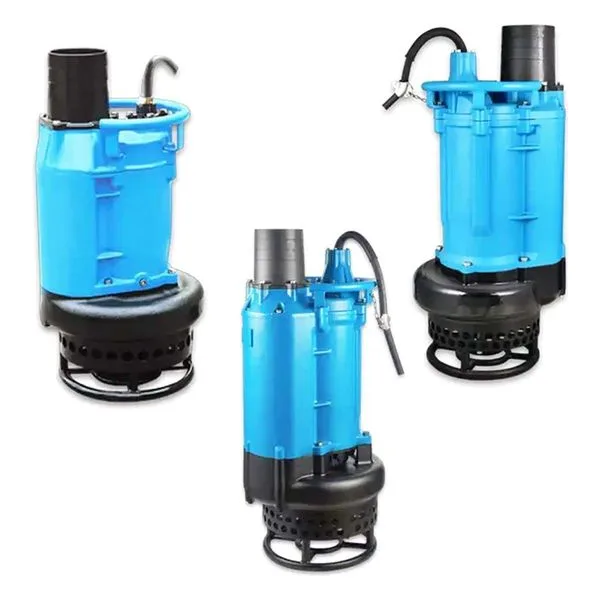

KMUD Series Submersible Slurry Pumps
About KMUD Series Submersible Slurry Pumps
Barmesa KMUD Series: The Industrial Standard in Submersible Slurry Pumping
Engineered for Resilience: The KMUD Advantage
When operational uptime is critical in the most punishing environments, the Barmesa KMUD series is the definitive industrial solution. These heavy-duty submersible slurry pumps are specifically engineered with a high-torque 1750 RPM motor, making them the ideal fit for moving thick, abrasive media that would cause standard pumps to fail. By merging a rugged ASTM A-48 Class 30 cast iron construction with an integrated high-chrome alloy agitator, Barmesa ensures your most challenging flow operations remain fluid, efficient, and entirely trouble-free.
Unmatched Hydraulic Reliability with High-Chrome Technology
We don’t believe in compromising between massive flow capacity and extreme abrasion resistance. The KMUD series delivers peak industrial performance by utilizing high-hardness materials throughout its entire hydraulic path.
Integrated Agitator Performance: Features a high-chrome alloy agitator designed to liquefy settled solids and keep heavy sediments in suspension.
Abrasive Resilience: Both the semi-open impeller and the inlet plates are crafted from high-chrome alloy to withstand constant contact with grit and slurry.
Heavy-Duty Solids Handling: Engineered with a large vertical discharge range from 3" to 8" NPT, specifically optimized for hose couplings in rugged dewatering sites.
Industrial Double Seal Protection: Precision Engineering
Reliability shouldn’t be a bottleneck, especially when submerged in dense media. At the core of the KMUD range is a professional-grade double mechanical seal system housed in an isolated, oil-filled chamber to ensure ultimate motor integrity.
Premium Seal Faces: Utilizes a sophisticated SiC-SiC / carbon-SiC seal configuration to prevent moisture and abrasive particles from reaching the motor.
Extreme Duty Motor: The three-phase motor is built with Class F insulation and an IP68 protection class, ensuring safe operation in continuous-duty applications.
Ruggedized Components: Constructed with a 420 AISI stainless steel shaft and 304 series hardware for lasting durability in corrosive slurry conditions.
Maintenance Simplified: Built for Industrial Longevity
High-performance equipment should be easy to maintain and deploy in the field. The KMUD series incorporates heavy-duty features that respect your team's time and maximize total site uptime:
Superior Deployment Range: Comes standard with a 50-foot neoprene cord, moisture-sealed for deep-sump installations.
All-Steel Hardware: Includes a high-strength steel handle and a steel strainer to protect the pump from oversized debris.
Cast Iron Durability: The upper cover, pump body, and motor housing are all cast from ASTM A-48 Class 30 iron, providing a vibration-dampening foundation for high-torque operation.
Versatile Deployment for Any Industrial Requirement
The KMUD series is designed to handle the "un-pumpable" across a wide range of infrastructure and site requirements.
Mining & Quarrying: The primary choice for clearing abrasive runoff, mineral slurries, and sediment-laden pits.
Steel & Foundries: Reliable performance for scale pits and moving heavy grit or metal fines.
Heavy Construction: Engineered for tunneling and excavation projects where high-viscosity drilling mud and bentonite are present.
