Engineered for Resilience: The KMUD Advantage

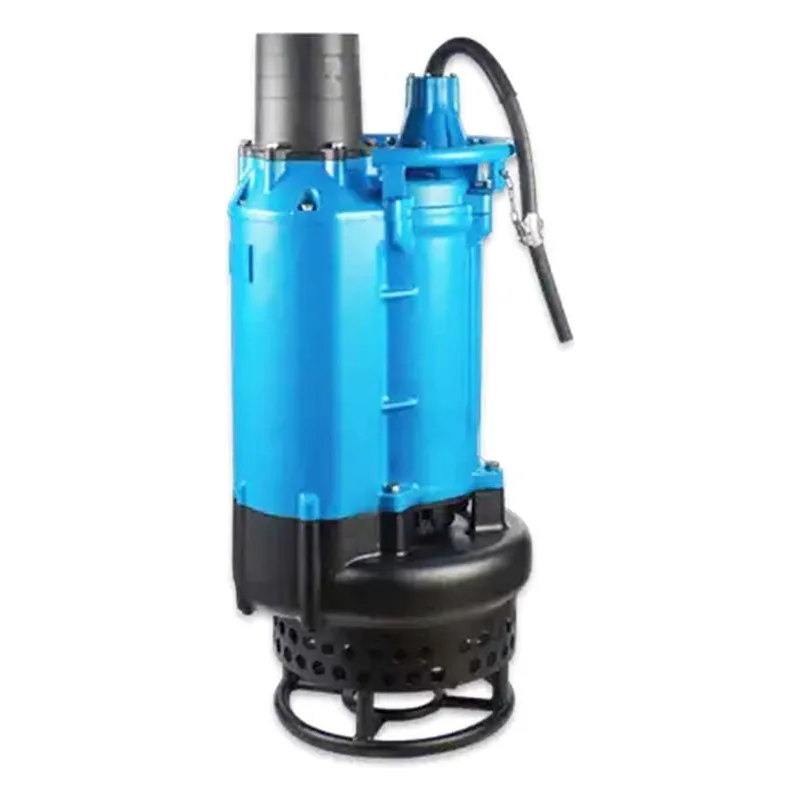

When operational uptime is critical in the most punishing environments, the Barmesa KMUD series is the definitive industrial solution. These heavy-duty submersible slurry pumps are specifically engineered with a high-torque, three-phase 1750 RPM motor, making them the ideal fit for moving thick, abrasive media that would cause standard pumps to fail. By merging a rugged ASTM A-48 Class 30 cast iron construction with an integrated high-chrome alloy agitator, Barmesa ensures your most challenging flow operations remain fluid, efficient, and entirely trouble-free.

Unmatched Hydraulic Reliability with High-Chrome Technology

We don’t believe in compromising between massive flow capacity and extreme abrasion resistance. The KMUD series delivers peak industrial performance by utilizing high-hardness materials throughout its entire hydraulic path.

• Integrated Agitator Performance: Features a high-chrome alloy agitator specifically designed to liquefy settled solids and keep heavy sediments in suspension for reliable transport.

• Abrasive Resilience: Both the semi-open impeller and the inlet plates are crafted from high-chrome alloy to withstand constant contact with grit and slurry.

• Heavy-Duty Solids Handling: Engineered with a large vertical discharge range from 3" to 8" NPT, providing a robust connection for hose couplings in rugged dewatering sites.

Industrial Double Seal Protection: Precision Engineering

Reliability shouldn’t be a bottleneck, especially when submerged in dense media. At the core of the KMUD range is a professional-grade double mechanical seal system housed in an isolated, oil-filled chamber to ensure ultimate motor integrity.

• Premium Seal Faces: Utilizes a sophisticated SiC-SiC / carbon-SiC seal configuration with stainless steel hardware to prevent moisture and abrasive particles from reaching the motor.

• Extreme Duty Motor: Built with Class F insulation and an IP68 protection class, these motors are designed for continuous duty at temperatures up to 104°F (40°C).

• Ruggedized Shaft Assembly: Constructed with a 420 AISI stainless steel shaft supported by 304 series stainless steel hardware for lasting durability in corrosive slurry conditions.

Maintenance Simplified: Built for Industrial Longevity

High-performance equipment should be easy to maintain and deploy in the field. The KMUD series incorporates heavy-duty features that respect your team's time and maximize total site uptime:

• Superior Deployment Range: Comes standard with 50 feet of neoprene cord, moisture-sealed for deep-sump installations.

• All-Steel Hardware: Includes a high-strength steel handle and a steel strainer to protect the internal hydraulics from oversized debris.

• Cast Iron Durability: The upper cover, pump body, and motor housing are all cast from ASTM A-48 Class 30 iron, providing a vibration-dampening foundation for high-torque operation.
