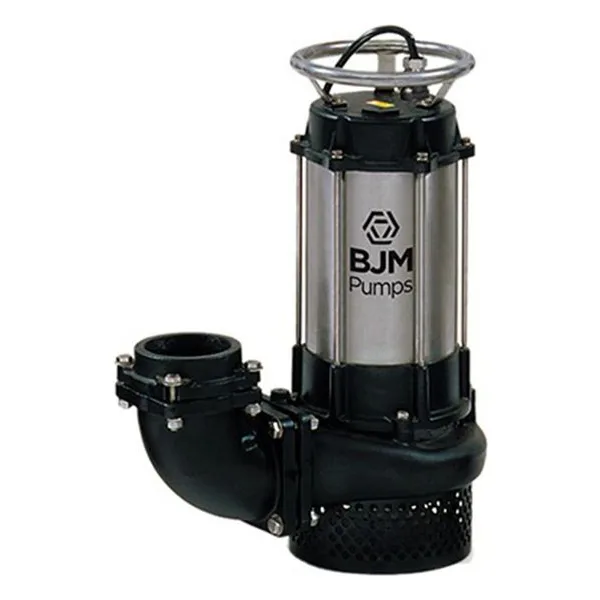

J Series General Sump Dewatering Pumps

The J Series Advantage: High-Flow Dewatering for Everyday Sump Applications

The BJM Pumps J Series Submersible Pumps are designed for general sump and dewatering applications where reliability, high flow capacity, and long-term durability are essential. Built with a side discharge configuration and a robust motor design, this series delivers efficient water removal across a wide range of residential, commercial, and industrial environments.

With flow capabilities reaching up to 650 GPM and a wide horsepower range, the J Series provides flexible solutions for everything from light-duty sump drainage to high-capacity dewatering systems.

Engineered for High Flow and Reliable Operation

The J Series is designed around a high-speed 2-pole motor operating at approximately 3450 RPM, allowing it to deliver strong flow rates and consistent performance. The side discharge design supports efficient installation in sump basins and works well with guide rail systems for easy maintenance and removal.

Capable of handling solids up to 3/8 inch, the J Series is well suited for applications involving water with light debris while maintaining steady hydraulic performance.

Key Features & Benefits

• High Flow Capacity: Delivers up to 650 GPM for demanding dewatering applications

• Side Discharge Design: Simplifies installation and supports slide rail systems

• Durable Construction: Cast iron pump body with 304 stainless steel motor housing

• Double Mechanical Seal System: Provides enhanced protection with an additional lip seal barrier

• Seal Minder® Option: Moisture sensing probe offers early detection of seal failure

• Thermal Protection: Built-in safeguards protect the motor during continuous operation

Built for Durability and Serviceability

The J Series is constructed with heavy-duty materials designed to withstand continuous use in wet environments. The combination of cast iron hydraulic components and a stainless steel motor housing ensures both strength and corrosion resistance.

A dual-seal system, consisting of a double mechanical seal and separate lip seal, protects internal components from contamination, helping extend service life. This design, combined with optional Seal Minder® monitoring, allows operators to maintain reliability while reducing the risk of unexpected failures.

Performance Specifications

• Horsepower (HP): 0.5 to 10 HP

• Max Flow: Up to 650 GPM

• Max Head: Up to ~120 ft

• Max Solids Handling: Up to 3/8 in (9.5 mm)

• Voltage Options: 115V, 230V, 460V, 575V

• Motor Speed: ~3450 RPM

• Max Liquid Temperature: 104°F

Typical Services & Ideal Applications

The J Series is designed for general dewatering applications where high flow and dependable operation are required. These pumps are commonly used in sump pits, construction dewatering, effluent transfer, and light industrial drainage systems.

Their versatile performance range and durable construction make them a reliable choice for both intermittent and continuous-duty water removal applications.
