Features & Benefits

The JXF Series combines high-temperature performance with corrosion-resistant construction, making it suitable for applications where standard materials and designs would fail. Its ability to operate in liquids up to 200°F while resisting chemical degradation ensures dependable operation in harsh environments.

Seal Minder® moisture detection provides an added layer of reliability by helping identify seal issues early, reducing downtime and maintenance costs.

Construction and Operational Design

JXF pumps are manufactured entirely from cast 316 stainless steel, ensuring consistent material properties and eliminating weld-related vulnerabilities. This makes the series highly resistant to corrosion and suitable for use in aggressive fluid environments.

Each pump is equipped with a double mechanical seal system, supported by an additional lip seal, providing multiple levels of protection against fluid contamination. FKM elastomers are standard to ensure chemical compatibility, with optional materials available for specialized applications.

The pumps are driven by high-speed 2-pole motors operating at approximately 3450 RPM. Class R insulation allows the motors to withstand elevated temperatures, while embedded thermal sensors provide protection against overheating during operation.

Design Characteristics

Temperature Capability: Designed for operation in liquids up to 200°F (93°C)

Corrosion Resistance: Cast 316 stainless steel construction provides excellent resistance to aggressive fluids

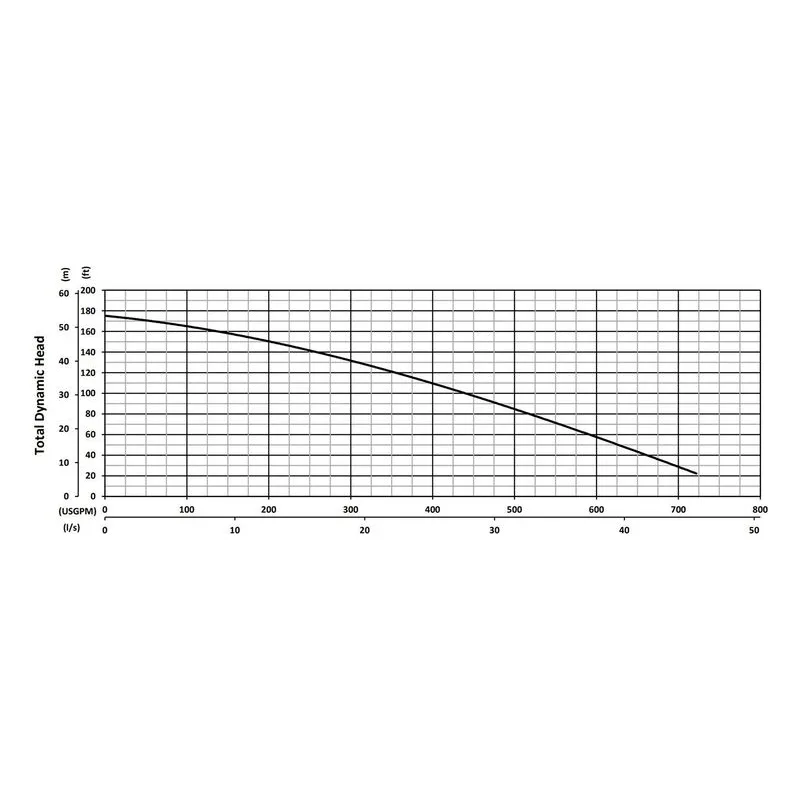

Hydraulic Performance: High-flow capability exceeding 700 GPM and head performance up to approximately 180 ft

Discharge Configuration: Side discharge design allows efficient installation and compatibility with guide rail systems

Seal System: Double mechanical seal with independent lip seal provides enhanced protection

Materials of Construction: 316 stainless steel used throughout all wetted components and motor housing

Solids Handling: Up to 3/8 inch for most models, with larger units capable of handling solids near 1 inch

Motor Design: High-speed 2-pole motor (~3450 RPM) with Class R insulation for high-temperature operation

Protection Features: Thermal sensors embedded in motor windings and Seal Minder® moisture detection system

Technical Summary

Power Range: 0.5 HP to 30 HP

Flow Capacity: Up to ~700+ GPM

Head Range: Up to ~180 feet

Solids Handling: Up to 3/8 inch (larger models up to ~1 inch)

Temperature Capability: Up to 200°F (93°C)

Motor Speed: ~3450 RPM

Typical Services & Ideal Applications

The JXF Series is designed for applications that demand both corrosion resistance and high-temperature operation. These pumps are commonly used in chemical processing plants, industrial wastewater systems, heated process applications, and environments handling aggressive or corrosive fluids.

Their combination of advanced materials, high-temperature capability, and robust sealing systems ensures reliable operation, extended service life, and reduced maintenance requirements in the most challenging dewatering applications.
