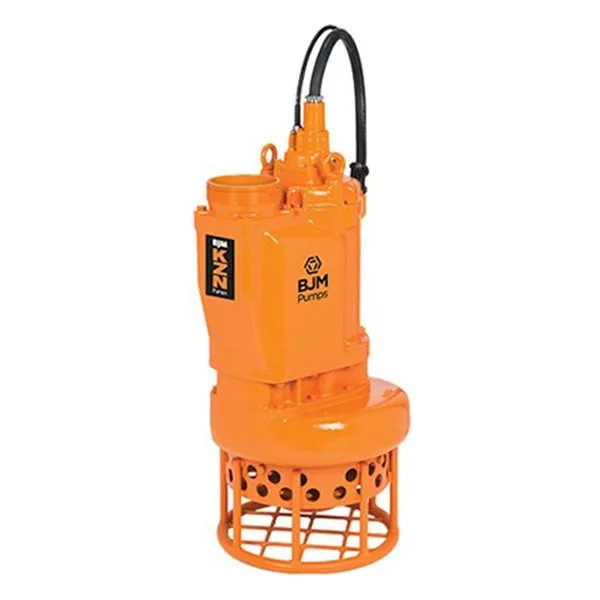

KZNF Series High Temperature, Heavy Duty Abrasion-Resistant Solids Handling Pumps

The KZNF Series Advantage: Built for Hot, Abrasive Slurry Applications

The BJM Pumps KZNF Series Fahrenheit® pumps are specifically engineered for demanding slurry applications where high temperatures and abrasive solids are present. Designed to handle fluids up to 200°F (93°C), these pumps deliver reliable performance in environments where standard submersible pumps cannot operate.

Combining rugged abrasion-resistant construction with advanced high-temperature capabilities, the KZNF Series offers a versatile solution for industries requiring durability, performance, and reliability under extreme conditions.

Engineered for High Temperature and Abrasive Service

The KZNF Series incorporates high chrome iron components in the impeller, agitator, and wear plate to resist abrasive wear and extend service life. A heavy-duty agitator continuously suspends solids such as sand, sludge, and slurry, improving pumping efficiency and reducing clogging.

The pumps are designed with specialized high-temperature materials and components, including Class R motor insulation and high-temperature rated cables, allowing safe and continuous operation in elevated temperature environments.

Key Features & Benefits

• High Temperature Capability: Handles liquids up to 200°F (93°C)

• Abrasion-Resistant Construction: High chrome iron (28%) impeller, wear plate, and agitator

• Integrated Agitator: Keeps solids suspended for improved efficiency

• Heavy Duty Build: Class 30 ductile iron construction with hardened volute

• Advanced Seal System: Double silicon carbide mechanical seals in oil-filled chamber

• High-Temp Motor Design: Class R insulation rated up to 428°F

• Motor Protection System: Embedded thermal sensors and Seal Minder® moisture detection

• Top Discharge Design: Enhances motor cooling and pump-down capability

• Flexible Configurations: Standard, high-head (H), and high-flow (L) variants available

Built for Continuous Duty in Extreme Conditions

KZNF pumps are designed for continuous-duty operation in high-temperature slurry environments. The oil-filled motor and seal chambers provide cooling and lubrication, while embedded thermal protection automatically shuts down the pump if excessive temperatures are detected.

The Seal Minder® system monitors moisture intrusion in the seal chamber, providing early warning to prevent damage and reduce downtime.

High-temperature rated power and sensor cables ensure safe operation, even in prolonged heat exposure.

Performance Specifications

• Horsepower (HP): 5 HP to 30 HP

• Max Flow: Up to ~1700 GPM

• Max Head: Up to ~100+ ft

• Max Solids Handling: Up to ~1.5"

• Max Liquid Temperature: 200°F (93°C)

• Motor Speed: ~1750 RPM

• Motor Insulation: Class R

Typical Services & Ideal Applications

The KZNF Series is ideal for handling hot, abrasive slurries in industrial and process environments. These pumps are commonly used in applications such as boiler blowdown, food and beverage processing, mining, petroleum refining, and other high-temperature fluid transfer operations.

Their ability to operate reliably in both high heat and abrasive conditions makes them a go-to solution where standard slurry pumps would fail.
