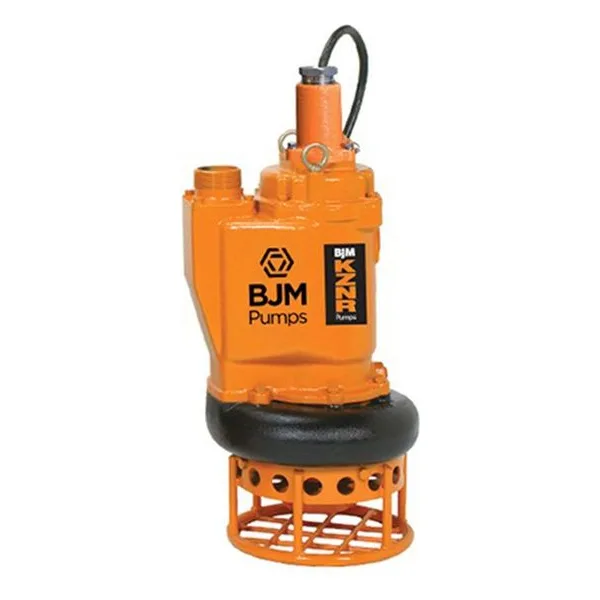

KZNR Series Heavy Duty, Abrasion-Resistant Solids Handling Pumps

The KZNR Series Advantage: Extreme Abrasion Resistance for the Harshest Slurry Conditions

The BJM Pumps KZNR Series is specifically engineered for the most severe slurry applications where traditional pumps experience rapid wear. Featuring a hardened ductile iron volute with up to twice the abrasion resistance of standard materials, the KZNR Series is designed to maximize uptime in extremely abrasive environments.

Built on the proven KZN platform and enhanced with hardened materials and high-chrome wear components, the KZNR Series delivers superior durability for demanding industries such as mining, aggregate processing, and heavy industrial slurry handling.

Engineered for Maximum Abrasion Resistance

The defining feature of the KZNR Series is its hardened ductile iron volute, heat-treated to approximately 71 Rockwell C hardness. This hardened construction provides significantly greater wear resistance compared to standard ductile iron, dramatically extending pump life in high-abrasion applications.

All critical wear components, including the impeller, agitator, and wear plate, are constructed from high chrome iron, ensuring consistent performance even when handling highly concentrated abrasive solids.

Key Features & Benefits

• Severe-Duty Construction: Hardened ductile iron volute for up to 2× abrasion resistance

• Extreme Wear Protection: Volute hardness up to ~71 Rockwell C / ~1180 DPH

• High-Chrome Components: 28% chrome impeller, wear plate, and agitator

• Integrated Agitator: Keeps solids suspended for efficient slurry handling

• Flexible Configurations: Standard (R), high-head (HR), and high-flow (LR) models

• Advanced Seal System: Double silicon carbide mechanical seals in oil-filled chamber

• Motor Protection: Built-in thermal and overload protection

• Top Discharge Design: Improves cooling and pump-down capability

• Heavy-Duty Construction: Class 30 ductile iron with hardened wear zones

Built for Extreme Duty Applications

KZNR pumps are designed for continuous-duty operation in the most abrasive slurry environments. The hardened volute significantly reduces wear, while the oil-filled seal chamber protects the dual mechanical seals from solids intrusion.

Class H motor insulation enables reliable operation under high thermal loads, and optional Seal Minder® moisture detection provides early warning of seal wear or failure.

Performance Specifications

• Horsepower (HP): 5 HP to 30 HP

• Max Flow: Up to ~1600+ GPM

• Max Head: Up to ~100+ ft

• Max Solids Handling: Up to ~1.5"

• Max Liquid Temperature: 104°F (40°C)

• Motor Speed: ~1750 RPM

• Motor Insulation: Class H

Typical Services & Ideal Applications

The KZNR Series is designed for extremely abrasive slurry environments where equipment longevity is critical. Common applications include mining operations, sand and gravel processing, dredging, tunneling, and industrial slurry transfer.

These pumps are ideal for situations where standard pumps fail prematurely due to wear, providing a robust solution that reduces downtime and maintenance costs.
