201337

Features & Benefits

The KZNR Series enhances the standard KZN platform with advanced hardening techniques to provide superior abrasion resistance. The hardened volute construction significantly extends wear life in harsh conditions, reducing maintenance frequency and improving overall reliability.

Combined with high chrome wear components and an integrated agitator, the pumps maintain strong hydraulic performance even in dense slurry applications.

Construction and Operational Design

KZNR pumps are constructed using Class 30 ductile iron with a specialized hardened volute that reaches approximately 71 Rockwell C hardness. This hardened interior surface dramatically improves resistance to wear from abrasive particles.

The impeller, wear plate, and agitator are manufactured from high chrome iron, delivering excellent abrasion resistance across all major wear surfaces.

A semi-open impeller design allows the pump to pass solids efficiently while minimizing clogging in high-density slurry applications.

Seal and Protection System

The KZNR Series features a dual mechanical seal system with silicon carbide faces, housed in an oil-filled chamber for cooling and lubrication. This configuration provides long-lasting sealing performance in abrasive service.

Motor protection includes built-in thermal sensors and overload protection. The optional Seal Minder® system monitors moisture intrusion, allowing early detection of seal failure.

Design Characteristics

Hydraulic Design: Semi-open impeller for high solids handling

Abrasion Resistance: Hardened ductile iron volute with high chrome components

Agitator System: Heavy-duty agitator for solids suspension

Seal System: Oil-filled double mechanical seal with silicon carbide faces

Materials of Construction: Hardened ductile iron (up to ~71 Rc)

Solids Handling: Up to approximately 1.5 inches

Motor Design: 4-pole (~1750 RPM) with Class H insulation

Protection Features: Thermal and overload protection with optional Seal Minder®

Configurations: Standard (R), high head (HR), and high flow (LR) variants

Technical Summary

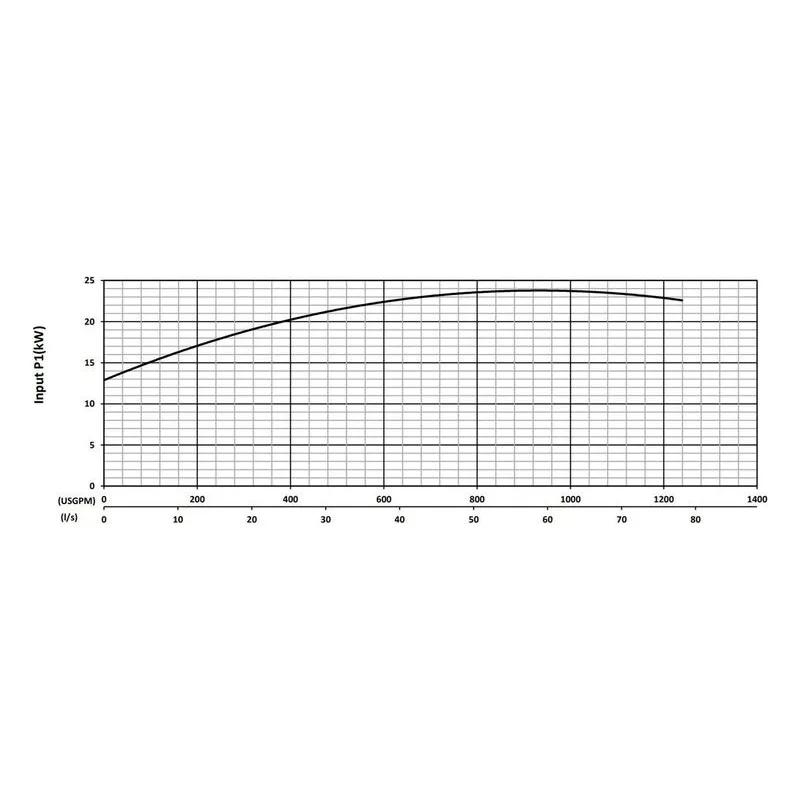

Power Range: 5 HP to 30 HP

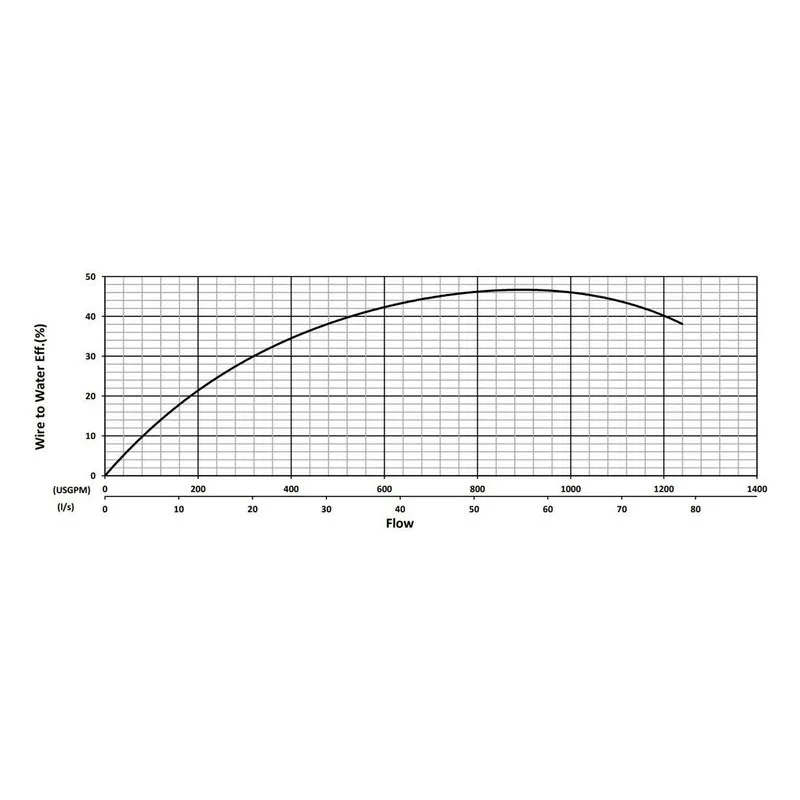

Flow Capacity: Up to ~1600+ GPM

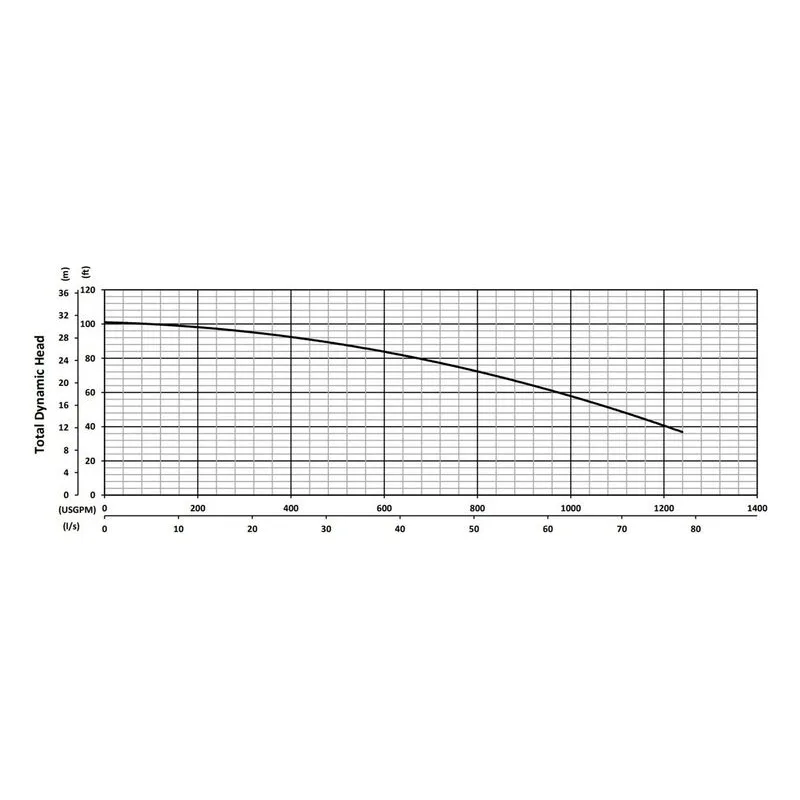

Head Range: Up to ~100+ ft

Solids Handling: Up to ~1.5 inch

Temperature Capability: Up to 104°F (40°C)

Motor Speed: ~1750 RPM

Typical Services & Ideal Applications

The KZNR Series is designed for the most demanding slurry applications where abrasion is the primary concern. These pumps are commonly used in mining, aggregate production, dredging, and industrial processes involving highly abrasive materials.

Their hardened construction makes them ideal for extending equipment life and reducing operational downtime in extreme wear environments.
