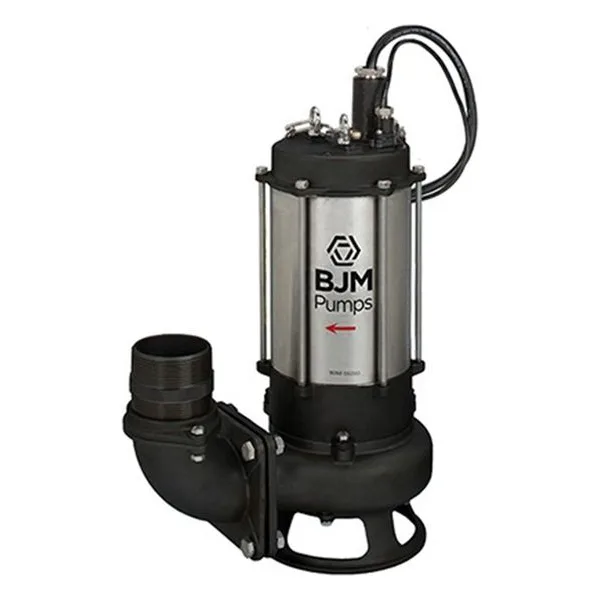

SKF Series High Temperature Shredder Pumps

High Temperature Shredding for Extreme Wastewater Conditions

The BJM Pumps SKF Series (Fahrenheit®) combines high temperature capability with integrated shredding technology, providing reliable performance in wastewater applications where both heat and difficult solids are present.

Engineered to handle liquids up to 200°F (93°C), the SKF Series is designed for environments where standard shredder or wastewater pumps cannot withstand elevated temperatures.

Advanced Shredding with Thermal Endurance

The SKF Series incorporates a wear-resistant shredding system designed to tear, break, and reduce solids prior to discharge. A tungsten carbide-tipped impeller works with hardened components to process debris and minimize clogging.

This shredding capability ensures reliable operation in wastewater systems containing fibrous materials, debris, and solids under high temperature conditions.

Built for High Temperature Durability

SKF Series pumps feature an oil-filled motor design, high temperature-rated materials, and FKM elastomers to maintain performance under thermal stress. Embedded thermal switches monitor winding temperature and automatically shut down and reset the pump to prevent damage.

The cable entry system is designed to prevent wicking in high temperature environments, while Seal Minder® moisture detection provides early warning of seal failure.

Key Features & Benefits

• High temperature operation up to 200°F (93°C)

• Fahrenheit® high endurance design

• Solids-handling shredder pump configuration

• Wear-resistant shredding and cutting system

• Tungsten carbide-tipped impeller

• Handles solids up to approximately 3.5" (model dependent)

• Oil-filled motor for heat dissipation

• Embedded thermal protection sensors (auto reset)

• Seal Minder® moisture detection system

• High temperature cable system with anti-wicking design

• Dual mechanical seals with oil chamber

• 304 stainless steel motor components

• ANSI flange or NPT discharge options

• Integral pump stand and heavy-duty lifting rings

Designed for Extreme Wastewater Applications

The SKF Series is specifically engineered for high temperature wastewater systems with challenging solids. It is suited for applications where both thermal conditions and debris content would typically limit standard shredders or solids-handling pumps.

Performance Specifications

• Horsepower (HP): 1 HP, 20 HP

• Max Flow: Up to ~874 GPM

• Max Head: Up to ~105 ft

• Max Solids Handling: Up to ~3.5"

• Motor Speed: ~1750 or ~3450 RPM

• Max Liquid Temperature: ~200°F (93°C)

• Motor Insulation: Class R

Typical Services & Ideal Applications

• High temperature wastewater lift stations

• Industrial process wastewater systems

• Food and beverage processing

• Laundries and washdown systems

• Boiler blowdown and heated discharge

• Applications with fibrous, clog-prone solids at elevated temperatures
