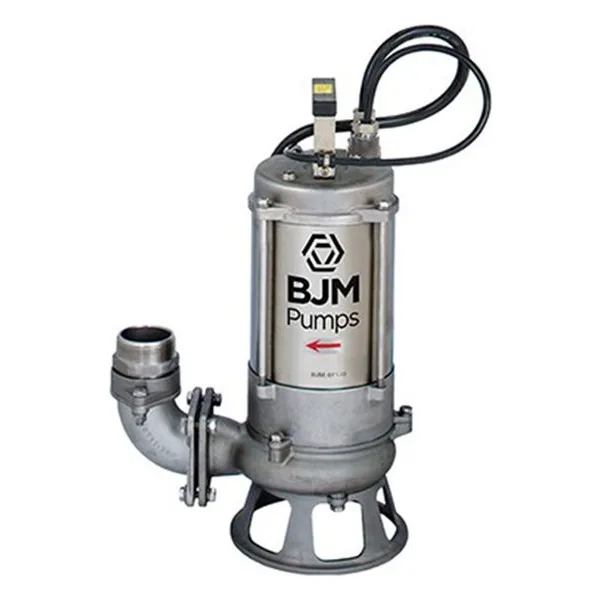

SKXF Series High Temperature, Corrosion-Resistant Solids-Handling Shredder Pumps

High Temperature Stainless Steel Shredding for Extreme Applications

The BJM Pumps SKXF Series (Fahrenheit®) is designed for high temperature, corrosion-resistant, solids-handling applications, combining stainless steel construction with advanced shredding technology.

Capable of handling liquids up to 200°F (93°C), the SKXF Series is engineered for environments where heat, corrosion, and clogging must all be managed simultaneously.

Built for Extreme Conditions

SKXF Series pumps are constructed from 316 stainless steel across all major wetted components, providing superior resistance to corrosive fluids while maintaining strength under thermal stress.

The oil-filled motor design, high-temperature cable system, and Class R insulation provide durability and consistent performance in continuous high temperature applications.

Advanced Shredding Technology

The SKXF Series incorporates a wear-resistant shredding and cutting system that tears and breaks down solids before discharge. A tungsten carbide-tipped impeller works with hardened components to reduce debris and prevent clogging.

This allows the pump to handle solids ranging from approximately 1.6 inches to 3.5 inches, depending on model size.

Key Features & Benefits

• High temperature operation up to 200°F (93°C)

• Full 316 stainless steel corrosion-resistant construction

• Integrated shredding and cutting system

• Tungsten carbide-tipped impeller

• Handles solids from approximately 1.6" to 3.5"

• Dual mechanical seal system with oil chamber

• Built-in thermal motor protection

• Seal Minder® moisture detection system

• High temperature cable system with anti-wicking design

• FKM elastomers for high heat and chemical resistance

• ANSI flange or NPT discharge options

• Integral removable pump stand

• Heavy-duty lifting rings

• Class R motor insulation

• Two-pole and four-pole motor options

• Single-phase and three-phase configurations

• Free-standing or guide rail installation

Designed for Extreme Wastewater Environments

The SKXF Series is optimized for applications where high temperature, corrosive fluids, and difficult solids are all present. It provides a complete solution where standard shredder or stainless pumps alone are not sufficient.

Performance Specifications

• Horsepower (HP): 1 HP, 20 HP

• Max Flow: Up to ~874 GPM

• Max Head: Up to ~105 ft

• Max Solids Handling: Up to ~3.5"

• Motor Speed: ~1750 / ~3450 RPM

• Max Liquid Temperature: ~200°F (93°C)

• Motor Insulation: Class R

Typical Services & Ideal Applications

• High temperature corrosive wastewater systems

• Industrial and chemical processing

• Food and beverage processing with heated fluids

• Laundries and washdown systems

• Marine and saltwater environments with elevated temperatures

• Municipal systems with aggressive, high-heat conditions
