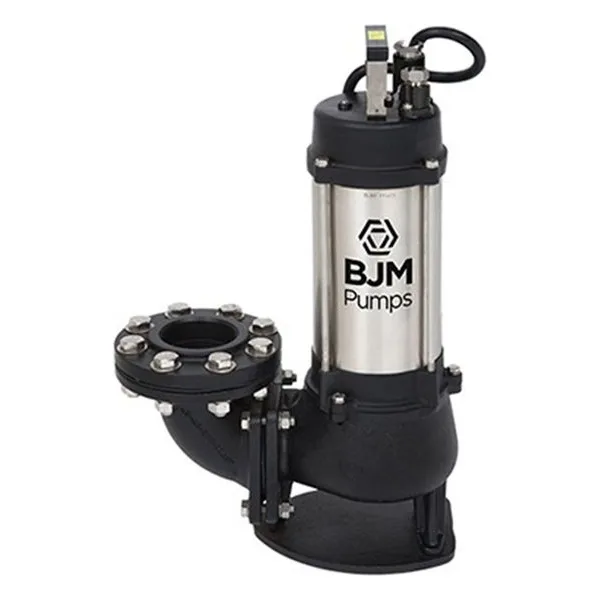

SV Series Solids Handling Non-Clog Vortex Pumps

Reliable Non‑Clog Pumping for Wastewater and Solids Applications

The BJM Pumps SV Series is designed for solids-handling, non-clog wastewater applications, utilizing a vortex impeller to move difficult fluids without direct contact with solids.

This design allows the SV Series to handle sewage, viscous liquids, rags, and debris while minimizing clogging and reducing maintenance requirements.

Vortex Impeller for Non‑Clog Performance

The SV Series uses a free-flow vortex impeller design that creates a rotating flow within the volute, allowing solids to pass through the pump without contacting the impeller directly.

This non-contact design enables the pump to pass solids up to approximately 90% of the discharge diameter, making it ideal for wastewater with large or stringy debris.

Built for Abrasion Resistance and Durability

SV Series pumps feature hardened ductile iron hydraulics for abrasion resistance, combined with a 304 stainless steel motor housing for corrosion resistance and improved heat dissipation.

A dual mechanical seal system operates in an oil-filled chamber to provide long service life and reliable sealing in demanding conditions.

Key Features & Benefits

• Non-clog vortex impeller design

• Handles sewage, viscous liquids, rags, and debris

• Passes solids up to ~90% of discharge diameter

• Abrasion-resistant ductile iron construction

• 304 stainless steel motor housing

• Oil-lubricated dual mechanical seals

• Built-in thermal and amperage protection

• Seal Minder® moisture detection system (optional)

• Class F motor insulation

• 2-pole and 4-pole motor configurations

• Single-phase and three-phase options

• Compact to high-capacity models available

Designed for General Wastewater Applications

The SV Series is ideal for municipal, industrial, and commercial wastewater systems where large solids or fibrous materials are present but shredding is not required.

Performance Specifications

• Horsepower (HP): 0.5 HP, 10 HP

• Max Flow: Up to ~821 GPM

• Max Head: Up to ~59 ft

• Max Solids Handling: Up to ~3.5" (model dependent)

• Motor Speed: ~1750 / ~3450 RPM

• Max Liquid Temperature:~104°F (40°C)

• Motor Insulation: Class F

Typical Services & Ideal Applications

• Wastewater lift stations

• Sewage and effluent systems

• Industrial sump applications

• Food processing waste streams

• Applications with rags, fibers, or debris

• General solids-handling without shredding requirements
