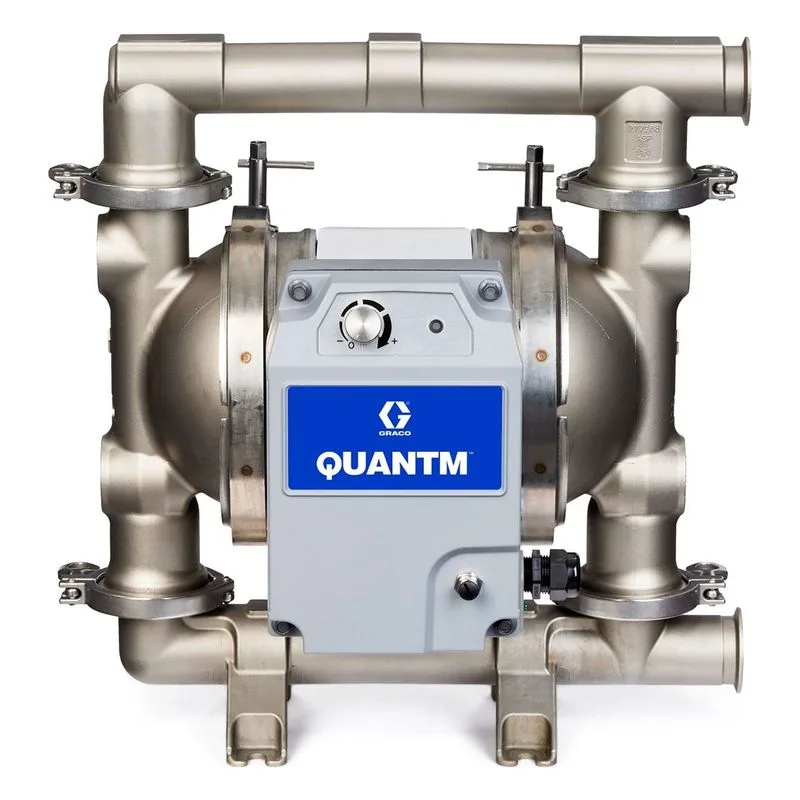

Image shown may not be actual product

HE80-1069

Name: HE80-1069 PumpCatalog GRACO
Brand: GRACO
SKU: HE80-1069
Price: 11480.00 USD
Availability: InStock

Graco HE80-1069 QUANTM Hygienic Food Grade Electric Double Diaphragm Pump, Model: QHD-FGFFASSPTPOPTS140021. Food Grade Stainless Steel, 125 micro finish (cast CF8M) Wetted Section, 316SS Seats, PTFE Balls, PTFE/EPDM Overmolded Diaphragms & Stainless Steel Standard DIN Flange Manifolds. 2" Sanitary DIN Flange Connections, 380-480 Volt, 3Ph (Three Phase), Aluminum Direct Drive FEP Coated Motor for use in Explosive Atmospheres (WW).

Brand: GRACO

Series:

QUANTM Hygienic Food Grade Electric Double Diaphragm Pumps

Item: HE80-1069Model #: QHD-FGFFASSPTPOPTS140021

$11,480.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	QUANTM Hygienic EODD Pumps Instructions	View
Parts Breakdowns	QUANTM Hygienic EODD Pumps Repair Manual	View

Series Information

QUANTM Hygienic Food Grade Electric Double Diaphragm Pumps Information

QUANTM Hygienic Food Grade — Electric Double Diaphragm Pump

High-Efficiency, FDA-Compliant, and Sealless

Overview

The QUANTM Hygienic Food Grade (FG) series is a 316 Stainless Steel electric double diaphragm pump designed to help FDA-approved facilities reduce energy costs and meet sustainability goals. Utilizing the powerful XT motor and drive, it delivers 8X more torque at low speeds and is up to 80% more efficient than air-operated models. With its smooth, steady flow and self-priming, sealless design, it is a perfect upgrade for in-process and filling applications.

Performance & Reliability

Designed to pay for itself in under 12 months, the FG series handles abrasives, solids, and shear-sensitive materials with ease. It features a unique stall-under-pressure capability, eliminating the need for complex pressure sensors and preventing pump failure during line blockages. The sealless architecture allows the pump to run dry indefinitely, significantly reducing maintenance downtime and contamination risks.

Materials & Construction

Constructed with a 125 Ra surface finish, the FG series includes overmolded diaphragm plates with PTFE on the fluid side and EPDM on the air side to eliminate bacterial crevices. The 316 Stainless Steel wetted sections and FDA-compliant elastomers ensure full regulatory compliance. The entire pump is IP66 wash-down rated, making it suitable for rigorous cleaning protocols in food processing, brewery, and wine transfer applications.

Controls & Automation

Operation is simplified through an integrated control dial that functions like a standard AODD pump. For facility-wide automation, a built-in I/O port enables remote management via a plant PLC. The intelligent auto-prime feature automatically restarts the priming cycle if fluid is lost, ensuring consistent throughput without manual intervention.

Installation & Serviceability

The QUANTM FG series fits seamlessly into existing AODD footprints, offering a drop-in solution that supports 120V, 240V, and 480V plug-and-play installation. Its design features fewer moving parts than traditional pumps, reducing repair time and total cost of ownership. Tri-clamp fluid connections provide a quick-knockdown design for fast maintenance and inspection.

Applications

The Food Grade series is engineered for the efficient transfer of food, personal care, and pharmaceutical ingredients. Whether used as a winery transfer pump, brewery pump, or for handling viscous sauces and oils up to 25,000 cps, the QUANTM FG series provides reliable, energy-efficient performance in any sanitary environment.
