Home GRACO QUANTM Industrial i80 Electric Double Diaphragm PumpsTE80-1237

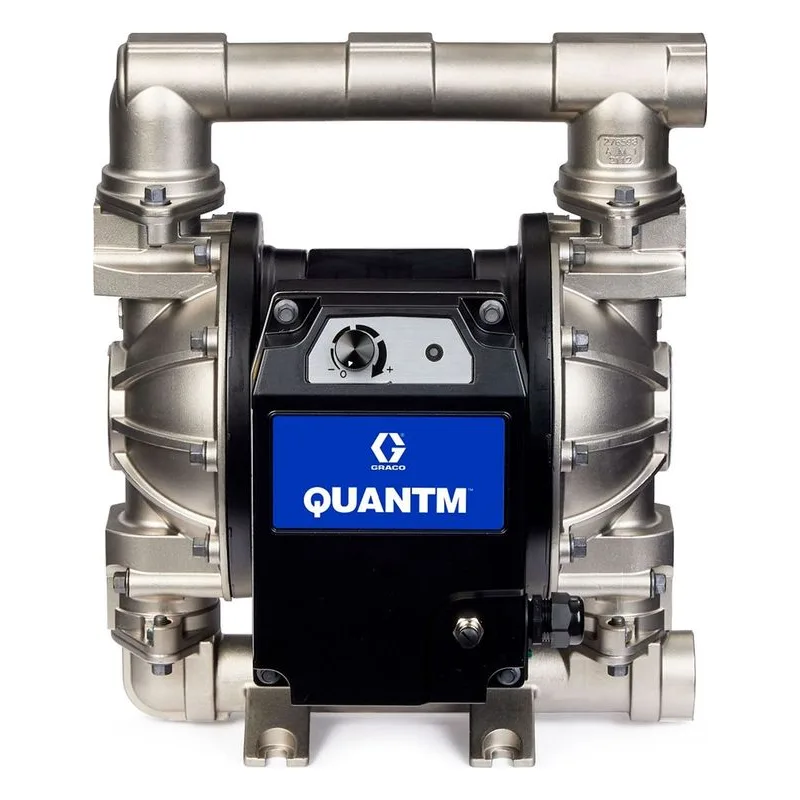

Image shown may not be actual product

TE80-1237

Name: TE80-1237 PumpCatalog GRACO
Brand: GRACO
SKU: TE80-1237
Price: 9200.00 USD
Availability: InStock

Graco TE80-1237 QUANTM Industrial i80 Electric Double Diaphragm Pump, Model: QTD-SSFE9SAPTPSPTS100. 316SS Wetted Section, 17-4PH Stainless Steel w/PTFE O-Rings Seats, PTFE Balls, PTFE/Santoprene 2-Piece Diaphragms & Stainless Steel Standard NPT Manifolds. 1.5" NPTF Connections, 380-480 Volt, 3Ph (Three Phase), Aluminum Direct Drive FEP Coated Motor for use in Hazardous (Classified) Locations (NA), Enhanced (Chemical).

Brand: GRACO

Series:

QUANTM Industrial i80 Electric Double Diaphragm Pumps

Item: TE80-1237Model #: QTD-SSFE9SAPTPSPTS100

$9,200.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Installation & Operation Manuals	QUANTM Industrial EODD Pumps Instructions	View

Series Information

QUANTM Industrial i80 Electric Double Diaphragm Pumps Information

QUANTM Industrial i80 — 1.5" Electric Double Diaphragm Pump

High-Efficiency, Direct-Drive, and Sealless

Overview

The QUANTM Industrial i80 is a 1.5-inch electric-operated double diaphragm pump designed for high-efficiency industrial transfer. By utilizing the direct-drive FluxCore motor, the i80 consumes up to 80% less energy than pneumatic alternatives while removing the requirement for a compressed air supply. This sealless, muffler-free configuration operates with 90% less sound intensity than air-driven pumps.

Performance & Reliability

Delivering up to 80 gpm at pressures reaching 100 psi, the i80 provides high throughput for demanding industrial services. It retains critical AODD benefits, including the ability to stall under pressure and self-prime without being gravity-fed. The sealless architecture allows the pump to run dry safely, while the direct-drive system avoids the mechanical complexity and maintenance requirements of traditional EODD gearboxes.

Materials & Construction

Fluid sections are available in Aluminum, Polypropylene, PVDF, and 316 Stainless Steel to ensure compatibility with a wide range of industrial fluids. Wetted components can be configured with seat and diaphragm materials including PTFE, Santoprene, and various elastomers. The entire pump is IP66 wash-down rated, making it suitable for continuous-duty operation in harsh or wet environments.

Motor & Controls

Smart controls allow for manual speed and pressure adjustments via an integrated dial at the pump. An intelligent auto-prime feature automatically restarts the priming sequence if fluid is not detected during operation. For automated facilities, the unit includes an I/O port for remote start/stop control and speed monitoring through a PLC.

Installation & Serviceability

With a footprint similar to standard 1.5-inch AODD pumps, the i80 serves as a drop-in replacement for existing air-driven systems. Setup is fast with factory-wired voltage options for 120V, 240V, or 480V power. Maintenance is streamlined by an externally accessible fluid section and a design with fewer moving parts than traditional electric or pneumatic pumps, reducing overall service costs.

Applications

The QUANTM i80 handles general industrial service, chemical transfer, and solids-bearing slurries. Its energy-efficient motor and robust construction make it a dependable choice for continuous duty in wash-down areas, remote installations without air compressors, and hazardous locations requiring ATEX certification.
