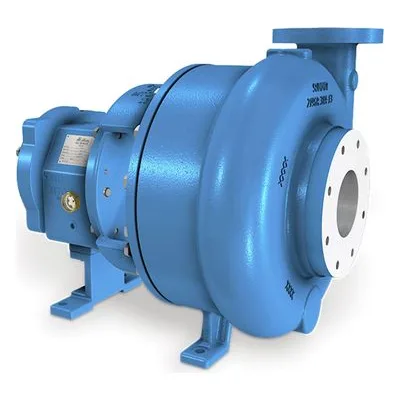

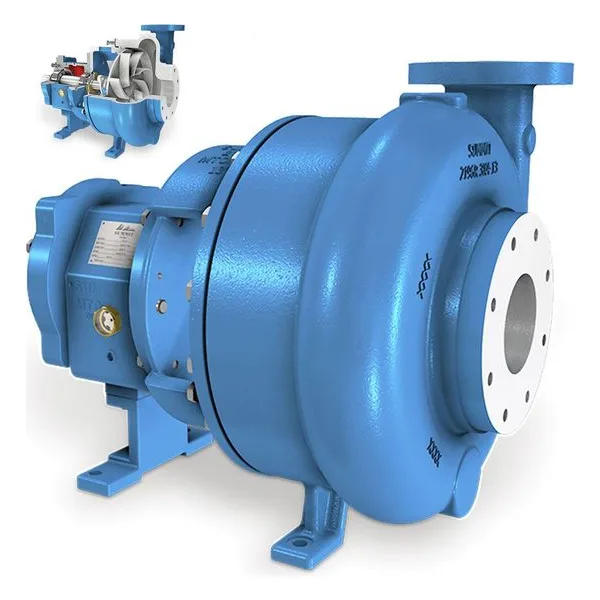

2196R ANSI Recessed Impeller Pumps
About 2196R ANSI Recessed Impeller Pumps
Series Overview
• ANSI B73.1 recessed‑impeller process pump
• Solids‑handling hydraulic design
• End suction / top discharge
• Vortex / recessed impeller
• Bare pump construction
• Back pull out rotating assembly
• Shares mechanical architecture with 2196 and 2196LF
Hydraulic Coverage
• Sizes: 1.5×3‑6R through 6×8‑13R
• Flow range: 50–2,500 GPM
• Head range: 10–300 ft
• Efficiency: reduced vs. standard ANSI
• Impeller type: recessed vortex
• Solids passage: wide, unobstructed flow path
• Suitable for fibrous, stringy, shear‑sensitive fluids
Material Options
• Ductile Iron (DI)
• 316 Stainless Steel
• CD4MCu Duplex Stainless
• Alloy‑20
• Hastelloy C
• Optional sleeve coatings: HMC / NCB
• Wetted component upgrades available by alloy
Mechanical Architecture
• Recessed impeller for solids handling
• Spherical casing for wide flow path
• Reduced solids contact
• Confined casing gasket
• Integral foot support
• Self‑venting casing
• Stuffing box or seal chamber
• External impeller adjustment
• Heavy‑duty shaft and bearings
Frame Sizes
• STO: 1.375 in shaft
• MTO: 1.750 in shaft
• LTO: 2.125 in shaft
• XLO: 2.500 in shaft
• Frame determines bearing size, shaft stiffness, allowable HP
Back Pull Out Assembly
• Rotating element removable without disturbing piping
• Includes shaft, bearings, bearing housing, isolators, impeller
• Consistent across 2196, 2196LF, 2196R
Power Ends
• Fully assembled units
• SKF radial and thrust bearings
• Labyrinth isolators
• Magnetic drain plug
• Enlarged oil reservoir
• Sight glass
• Available in STO, MTO, LTO, XLO
• Interchangeable across all 2196 variants
Forever Frame™ (316 Stainless Steel Power End)
• 316 stainless steel construction
• Improved thermal stability
• Corrosion resistance
• Compatible with all frame sizes
• Includes stainless fasteners, plugs, sight glass, frame foot
Shaft Kits
• Available for STO, MTO, LTO, XLO
• Sleeve‑type and solid‑type assemblies
• Material options: 4140 + 316 sleeve, 316 + 316 sleeve, 316 solid
• Kits include bearings, sleeve (if applicable), hardware, coupling key
2196R Variant
• Recessed impeller for solids handling
• Wide, unobstructed flow path
• Suitable for fibrous and shear‑sensitive fluids
• External impeller adjustment
• Heavy‑duty shaft and bearings
• Interchangeable power ends with 2196 and 2196LF
Cross Compatibility
• Fully ANSI/ASME B73.1 compliant
• Interchangeable with Goulds 3196R
• Frame groups: STO ↔ ST, MTO ↔ MT, LTO ↔ LT, XLO ↔ XLT
• Compatible with PumpWorks PWA‑R
• Back pull out assemblies follow ANSI serviceability pattern
• Forever Frame maintains compatibility
