NDP-40 Series

About NDP-40 Series

Yamada NDP-40 Series Double Diaphragm Pumps

Yamada NDP-40 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 116 gallons per minute. Pumps are available in aluminum, stainless steel (316), cast iron, polypropylene, and Kynar construction, with a wide variety of diaphragm materials.

Filters

No filters available

46 products

Yamada

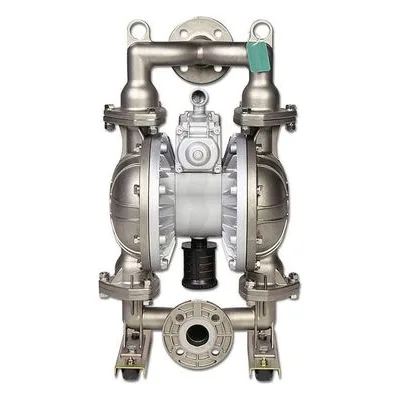

NDP-40BSC

Yamada America NDP-40BSC NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852419. 316 Stainless Steel Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,430.00

Yamada

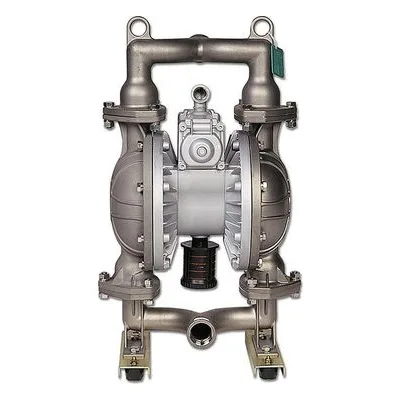

NDP-40BSC-NPT

Yamada America NDP-40BSC-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852641. 316 Stainless Steel Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,195.00

Yamada

NDP-40BSE

Yamada America NDP-40BSE NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852420. 316 Stainless Steel Body, Nordel Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,430.00

Yamada

NDP-40BSE-NPT

Yamada America NDP-40BSE-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852642. 316 Stainless Steel Body, Nordel Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,195.00

Yamada

NDP-40BSH

Yamada America NDP-40BSH NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852224. 316 Stainless Steel Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,430.00

Yamada

NDP-40BSH-NPT

Yamada America NDP-40BSH-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852638. 316 Stainless Steel Body, Hytrel Diaphragm & Balls, Buna-N O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,195.00

Yamada

NDP-40BSN

Yamada America NDP-40BSN NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852223. 316 Stainless Steel Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,430.00

Yamada

NDP-40BSN-HP

Yamada America NDP-40BSN-HP NDP-40 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852223-HP. 316 Stainless Steel Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 53.5 GPM Flow Rate, 180 PSI, Passes up to 9/32" (7mm) Solids.

$5,625.00

Yamada

NDP-40BSN-NPT

Yamada America NDP-40BSN-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852637. 316 Stainless Steel Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,195.00

Yamada

NDP-40BSS

Yamada America NDP-40BSS NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852710. 316 Stainless Steel Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,430.00

Yamada

NDP-40BSS-HP

Yamada America NDP-40BSS-HP NDP-40 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852710-HP. 316 Stainless Steel Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 53.5 GPM Flow Rate, 180 PSI, Passes up to 9/32" (7mm) Solids.

$5,625.00

Yamada

NDP-40BSS-HP-NPT

Yamada America NDP-40BSS-HP-NPT NDP-40 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852712-HP. 316 Stainless Steel Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 53.5 GPM Flow Rate, 180 PSI, Passes up to 9/32" (7mm) Solids.

$5,390.00

Yamada

NDP-40BSS-NPT

Yamada America NDP-40BSS-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852712. 316 Stainless Steel Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$4,195.00

Yamada

NDP-40BST

Yamada America NDP-40BST NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852225. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$5,435.00

Yamada

NDP-40BST-NPT

Yamada America NDP-40BST-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852639. 316 Stainless Steel Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$5,190.00

Yamada

NDP-40BSU

Yamada America NDP-40BSU NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852225-U. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

Price not available

Yamada

NDP-40BSU-NPT

Yamada America NDP-40BSU-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852639-U. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

Price not available

Yamada

NDP-40BSV

Yamada America NDP-40BSV NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852301. 316 Stainless Steel Body, Viton Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$5,800.00

Yamada

NDP-40BSV-NPT

Yamada America NDP-40BSV-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852640. 316 Stainless Steel Body, Viton Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$5,560.00

Yamada

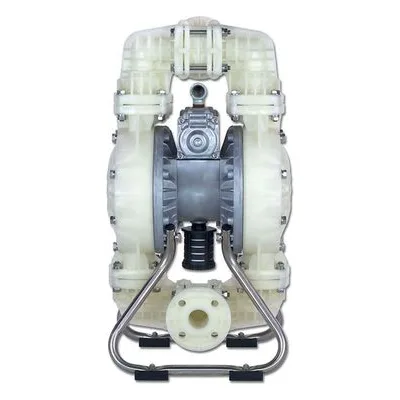

NDP-40BVS

Yamada America NDP-40BVS NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 853798. Kynar Body, Santoprene Diaphragm & Balls, PTFE O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$6,930.00

Yamada

NDP-40BVT

Yamada America NDP-40BVT NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 853797. Kynar Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$7,695.00

Yamada

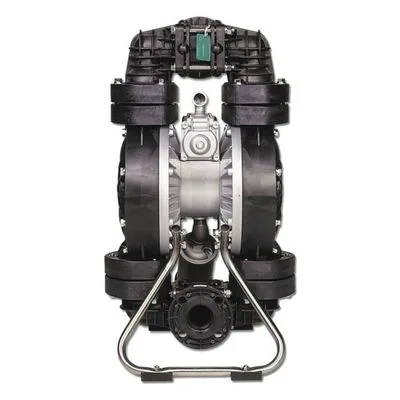

NDP-40BVU

Yamada America NDP-40BVU NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 853797-U. Kynar Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

Price not available
