Barnes

Barnes 2SEV-DS Double Seal & 2SEV-L Single Seal Submersible Non Clog Vortex Impeller, 2" Spherical Solids Handling Sewage Pumps designed for typical raw sewage pumping applications with a 2" Discharge. Available models include 1/2 HP, 3/4 HP, 1 HP, 1 1/2 HP and 2 HP at 1750 and 3450 RPM.

Barnes 3SE-DS Double Seal Submersible Non Clog Submersible Sewage Ejector Pump, 1/2 HP - 3 HP, 2" - 2 1/2" Spherical Solids Handling, 3" Discharge. Designed for typical raw sewage pumping applications.

Barnes 3SE-HD Heavy Duty Single Seal Submersible Non Clog Sewage Ejector Pump. Available with a 3" Discharge, 1 1/2 HP & 2 HP and 2 1/2" Shperical Solids handling capabilities designd for typical sewage pumping applications.

Barnes 3SE-L Single Seal Submersible Non Clog Sewage Ejector Pump, 1 1/2" - 2 1/2" Spherical Solids Handling, designed for typical raw sewage pumping applications. Available in 1 1/2 HP, 2 HP, 3HP & 1750 and 3450 RPM models.

Barnes 3SEV-L Single Seal & 3SEV-DS Double Seal 3" Discharge, 2" Spherical Solids Handling Vortex Pump. Submersible, Non Clog Sewage Ejector Pump designd for typical raw sewage pumping applications.

Barnes 4SE-L, 4SE-HL & 4SE-DS Submersible Non Clog Sewage Ejector Pump with a 4" Horizontal Discharge and 1 1/2" to 3 " Shperical Solids Handling capabilites designed for typical raw sewage pumping applications.

Barnes 4SEV-DS Series 4" Non Clog Horizontal Discharge, Submersible Pumps. 3" Spherical Solids Handling Vor tex Impeller Pump Designed for Typical Raw Sewage Applications. 4SEV-DS 4.5 - 7.5 HP, 1150 RPM, 60Hz & 4.5 - 15HP, 1750 RPM, 60Hz Series.

Available Barnes Accessories

• Panels, Floats, Level Controls
• Alarms, BOSS Oil Sensor Switch, Junction Box, Conduit Hub,
• Capacitor Packs, Discharge Coupling, Check Valves,
• Break Away Fittings (BAF), Intermediate Support Rails
• Basins & Covers - Poly & Fiberglass, Simplex & Duplex
• Level Control Cable Rack, Lifting Chain, Fittings, Foot Valve
• Ball Valves, Extension Handles
• Retrofit Kit

Blade XGV Submersible Grinder Pumps, XP - Explosion Proof, Vertical NPT & Horizontal Flanged Connection Models. The new solution from Barnes to handle high head and high flow wastewater grinding applications for municipal, commercial and industrial environments. The models are available in 3 HP through 15 HP Explosion Proof (XP) models with a 2", 2.5" or 3" Discharge size. These Blade grinder pumps are long lasting, dependable with ease of ownership & maintence. Eqipped wiht the Barnes Slicerator radial cutting technology with a plug and play quick connect cord. Purchase a Blade Pump today for demanding solids handling material such as plastic, ropes, diapers and cloth materials.

Barnes Pumps submersible BP Series is designed for handling sewage effluent in typical septic tank pumping applications.

Barnes CCE Series Self Priming Centrifugal Pumps are designed to meet a broad range of general and special industrial applications. Designed for marine, municipal and industrial pumping applications and available in 3 HP, 4 HP, 5HP, 10 HP, 15 HP, 20 HP & 25 HP models.

Barnes Pumps EH Series Effluent pumps are designed for handling dirty water in typical septic tank / effluent applications. Special high temperature EH-HT models are available. A Barnes effluent pump is specifically designed to handle almost all low and high head effluent applications.

Barnes Pumps EP Series EP52 & EP72 Effluent / Sump Pumps feature 230 volt 1 phase operation in a rugged cast iron, heavy duty, high performance design. Barnes Effluent pumps save time and replacement costs because they are interchangeable with competing effluent models. They require no additional plumbing when replacing most competitor’s pumps.

Barnes OGV Omni Grind™ centrifugal grinder pump sets a standard for reliability and durability. It is ideal for lowcost, residential or commercial high-head on high-" ow applications. The built-in automatic resetting motor overload ensures peace of mind and provides utmost protection. The design allows for easy and trouble-free installation with these features:
1. Internal mounted starting components
2. Exclusive Quick-Connect Power Cord
3. Removable discharge Flange

Omni Grind™ Advantages
• Recessed vortex impeller design easily handles finely ground solids generated by the grinder
• Exclusive Slicerator eliminates jams by applying the full torque of the motor on one small section of the cutter ring at a time

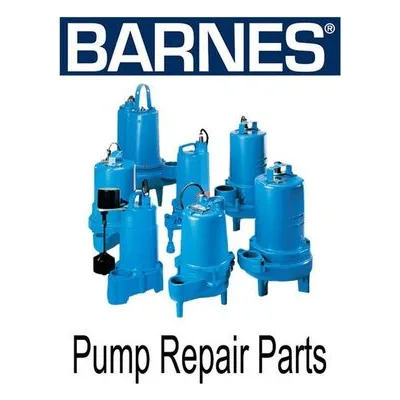

Barnes Pump Repair Parts for the following series & Models: BP, EH, EP, STZEP, SE, SE411-421, SE412, Se511, SE521, SEV511, SEV521, 2SEV DS & L, 3SE-L, 3SE-DS, 3SE-HD, SE-L, SE-HT, 4SE, 3SEV-L, 3SEV-DS, SP, SGX, OGV, XSGV, CCE, SFU, SF & OGP

Barnes Grinder Pumps

ProGrind Vortex PGPP / PGPH High Flow & RIVAL Grinder Pumps

Barnes Submersible Grinder Pumps Manufactured by Crane

RIVAL Series: RV - 1HP, 3450RPM, 60Hz, 2" NPT Discharge

• Designed to reduce domestivc sewage to a finely ground slurry.

ProGrind Series: PGPP & PGPH - 2 HP, 3450 RPM, 60 Hz. High-Flow and High-Head, 1 1/4" NPT Female, Vertical, Bolt On Flange

• Desighed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.

CUTTING EDGE DESIGN FOR A NEW-AGE WASTESTREAM

RAZOR Grinder pumps are the ideal 2 HP pump for light commercial and residential solids handling applications,
thoughtfully designed with innovative axial cutting technology to efficiently reduce solids like flushable wipes, diapers and other non-biodegradable items commonly found in the modern waste stream.

Features & Benefits

Patented Axial Cutter: Provides Superior Non-Clogging versus Radial designs

Light Weight: Designed for ease of installation and service

Dual Voltage Motor: Optimal cutting torque performance in low voltage situations 208-240V

Retrofit: Configurations available to retrofit into existing Barnes applications and competitor’s grinder installs

Online Configurator: Highly customizable solutions

Float or Pressure Switch options

Convenient Maintenance: Utilize single tool for service and maintenance

Non-Overloading: Built to handle varying pressures without wear

Designed for Pressure Sewer: Unlike non-clog pumps with large discharge sizes, Razor 1.25” discharge is suitable for preconfigured packaged systems and turn key solutions • Serviceability: Plug-n-Play cord provides easy service with out requiring removal of epoxy in conduit

More details on Barnes's Residential, Municipal, Commercial and Light Industrial Solids Handling Grinder Pumps

Standard Plug-n-play cord simplifies service (ZOGV2072P includes attached 240V plug end).

Oil-Filled Motor for optimal motor cooling and maximum bearing life

Stainless steel hardware provides resistance against corrosion to extend pump life.

Simplified hardware requires only one standard tool for service.

Axial Cutter design greatly reduces clogging issues due to troublesome objects.

Available in multiple discharge configurations for simple installation and replacement.

Heavy duty, oil-lubricated bearings extend pump life.

Smooth oversized lifting bail and light weight allows for easy installation by hand or hoist.

Automatic level control options (piggy-back mechanical float switch).

Barnes SE, SE-l & SE-HT Single Seal Submersible Non Clog Sewage Ejector Pump with 2" Spherical Solids Handling capabilities. Designed for typical raw sewage pumping applications. Available in 1/2 HP, 3/4 HP & 1 HP and a 2" Discharge. High temperature model also available.

Barnes Pumps SE411 & SE421 Submersible Non Clog Sewage Pump Designed for typical raw sewage applications, .4HP, 1750 RPM at 60Hz with a 2" NPT Female Vertical Discharge Spherical Solids Handling. High Temperature Models Available.

Barnes Pumps SE511 / SE521 & SEV511 / SEV521 Submersible Non Clog 2" Spherical Solids Handling Manual & Automatic Pumps designed for typical raw sewage applications. Available in a 1 1/2", 2" or 3" discharge.

Barnes SEC Cutter Pumps Series

2HP, 3HP & 5HP Municipal, Industrial & Commercial Clogging Problem Solutions.

3SEC2092A, 4SEC3094A & 4SEC5094A Packaged Cutter Pumps to Retrofit into every application.

Each of these pumps includes everything needed to install into every application. Equipped with a horozontal JIS80 dishcharge and asold with a 3" or 4" versical disharge elbow & JIS80 ANSI flange adapter.

• Rugged pump design, constructed with ASTM A-48 Class 30 Cast Iron
• Removable stand and discharge accessories to fit perfectly in freestanding installations or on a variety of guide rail systems
• Air filled motor protected with integral moisture and temperature sensors
• Steel cutting plate and impeller blade provide superior cutting

Package Features

Barnes SEC CUtter Pumps have provided a single our of the box solution that allows for simplified inventory and no surprises during installation.

Barnes Pumps SEV412 Submersible Non Clog pumps combine high quality, high performance and low cost in a rugged, heavy duty design. Capable of handling up to 2 inch spherical solids, the pump utilizes a vortex impeller and a combination of cast iron and stainless steel components to stand up to the toughest residential sewage ejector applications.

Barnes SF, SF-L, 3SF & 3SF-HD Submersible Fountain Pumps are the market leader for decorative water applications. These pumps are designed for use in dramatic décor water display pumping applications and available in .4 HP to 3 HP models as well as Heavy Duty options.

Barnes SFU Submersible Fountain Pumps are the market leader for decorative water applications. All Bronze and stainless steel construction, 1/3 HP to 1 HP models. These pumps are designed for use in dramatic décor water display pumping applications.

Barnes SGV Three Bearing Double Seal Centrifugal Grinder Pumps are designed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.

The cost and efficiency benefits of low pressure sewer systems includes the advantages of the exclusive quickconnect power cord Add the installation and maintenance benefits of the exclusive one plug, quick connect power cord to the proven performance of the SGV, submersible grinder vortex pump, and you have arguably the most cost effective solution available to difficult sewering problems. The custom-molded plug design provides bubble-tight sealing assurance.

Barnes Pumps SP33, SP50, & SP75 effluent pumps feature low cost, high performance benefits from a rugged, heavy duty design. With upper and lower ball bearings and a heavy duty cast iron vortex impeller, Barnes SP33, SP50 & SP75 effluent pumps are robustly designed for long operational life and dependable service. They are further enhanced by a stainless steel shaft and hardware, plus an industrial grade mechanical seal.

Barnes Stealth Control Panels provide realiable proven performance. Duplex and Simplex models are within a NEMA 4X enclosure and come in either single phase (1PH) or three phase (3PH) power. All of these components are UL Listed.

GENERAL: A wall mounted control panel shall be supplied with each station. All control panels shall be UL Listed to meet Standard UL 508A. Each panel shall be constructed with a padlockable NEMA 4X non-metallic enclosure and utilize stainless steel hardware.

SIMPLEX CONTROL PANELS: The control panel shall include as a minimum: circuit breakers, fuses, terminal strip, ground lug, capacitors when required, IEC rated motor starters, relays, alarm silence button mounted on enclosure, and internal push to run button.

HIGH WATER ALARM DEVICE(s): Each control panel shall include a visual and audible, with silence, high water alarm device. Alarm circuit shall be separately fused from motor control circuit. The visual alarm shall be a red fl uted lens mounted to the top of the enclosure in such a manner as to maintain rain-proof integrity. The 90db audible device shall be capable of being de-activated by means of a NEMA 4X silence button mounted on the exterior of the enclosure. Visual alarm will remain on as long as a high water condition exists in the basin. Both visual and audio alarms will automatically reset when the high water condition subsides.

Barnes Pumps STEP-SS Series: .5 & 1 HP, 3450 RPM, 60 Hz & Series: STEP-DS .5 & 1 HP, 3450 RPM, 60 Hz Effluent pumps are designed for handling dirty water in typical septic tank / effluent applications. High temperature models are available. Barnes effluent pumps are designed to handle most low and high head effluent applications.

The New Standard in Reliable Wastewater Management: The SyFlo 4ESD Series

Mastering the Challenges of Modern Waste Streams The SyFlo 4ESD Series represents a sophisticated evolution in submersible pump technology, specifically engineered to handle the "non-dispersible" solids that define today’s wastewater environment. Rather than relying on outdated designs, this series utilizes advanced scroll and vortex hydraulics to ensure that wipes, rags, and debris pass through the system without interruption. For facilities looking to eliminate the constant burden of emergency maintenance and clog-related downtime, the SyFlo 4ESD offers the most reliable path forward.

The Economic Advantage of High-Efficiency Engineering

Investing in the SyFlo 4ESD Series is a strategic move for your operational budget. By pairing IE3-rated premium efficient motors with optimized wet-end hydraulics, these pumps deliver a level of performance that frequently allows for lower-horsepower replacements without any loss in head or flow. This "efficiency-first" approach means your system works smarter, not harder—significantly reducing monthly energy consumption and lowering the total cost of ownership over the life of the pump.

Built for Integrity and Long-Term Operational Security

The engineering behind the SyFlo 4ESD Series prioritizes mechanical integrity at every turn. By utilizing a single-piece motor housing, the design drastically reduces potential leak paths, protecting the motor from the leading cause of submersible failure. Combined with Class H insulation—rated for temperatures up to 180°C—and permanently lubricated bearings, this series is built to sustain peak performance in the most demanding environments. It is a pump designed for those who value equipment that stays in the ground and out of the repair shop.

Proven Performance Backed by American Craftsmanship

Choosing the SyFlo 4ESD Series means choosing a product designed and built in the USA with a focus on ease of integration. Whether you are retrofitting an existing lift station or designing a new treatment plant, the slotted ANSI flange and "Quick Connect" cord system ensure a seamless, hassle-free installation. With the added security of an industry-leading 5-year full warranty, the SyFlo 4ESD is more than just a pump—it is a long-term partnership in performance and reliability.

Barnes Utility Sump Pumps, UT17, Dewatering Pump Models: 70, 71, 125 & 126. Laundry Tray SU33, Transfer Model Numbers BT12 & BT50. We also carry Barnes Condesate Pump BC-15 & BC20s.

Barnes XSGV Explosion Proof Submersible Grinder Pump is designed for use in hazerdous locations to reduce domestic, commercial, institutional and light industrial sewage into a fine slurry. Available with a 1 1/4" Discharge or a 2" Discharge and comes in a 2 HP, 3, HP, 5 HP or 7 1/2" HP Models.
