The CHUGGER MAX Series of TEFC and ODP Models feature Stainless Steel FDA Compliant Materials as well as a Polysulfone option. These pumps have a 1" FPT x 1/2" MPT connection and are capable of transferring 17 GPM at 12 PSI. You can also easily toggle between 115V and 230V on our TEFC models to meet your exact specifications. The Chugger Max ODP models come in your choice of 115V or 230V with a Stainless Steel or Polysulfone Pump Head.

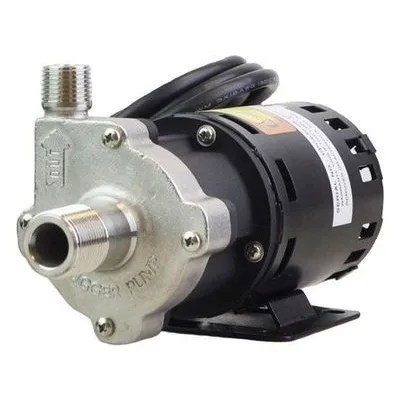

Chugger-SS Center is most commonly used for homebrewing. It is a booster pump that is designed to transfer hot and cold liquids. The Chugger Pump is not a self-priming pump so DO NOT RUN DRY! The Chugger-SS Center Pump is also comparable to the March 815-SS-C Pump.

XCPSS-CI X-Dry with Run Dry Protection

Same pump as the CPSS-CI-1 but with FDA Approved Run Dry Carbon Bearing Material.

• Inlet 3/4" MPT Outlet 1/2" MPT
• 316 STAINLESS STEEL (Front Housing), 316 Stainless Steel (Rear Housing), Teflon (Thrust Washer), CLEAR Silicone (O-Ring), Ryton/Teflon Impeller
• Max Flow 7 GPM 22.7 LPM
• Max Head 18.6 FT 4.1 M
• Power 1/20 HP (.04 HP) .029 KW
• Electrical 115V & 230V Models 50/60HZ
• Non-Submersible
• Motor AMP Rating - Full Load Amps (FLA)
• Motor Only: 1.7 Amps
• Motor and Pump: 1.9 Amps
• Can handle liquids of 250F
• Materials are FDA Food Compliant
• Components are UL Recognized"

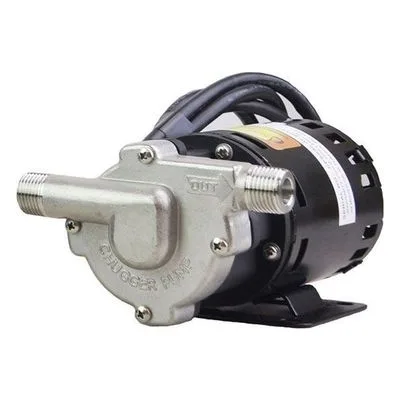

Chugger-SS Inline Pump is typically used for homebrewing. It is a booster pump designed to transfer hot and cold liquids. It is not a self-priming pump so DO NOT RUN DRY! The Chugger Pump head must be flooded with liquid prior to turning on the pump. The Chugger-SS Inline is comparable to the March 815-SS Pump.

XCPSS-IN X-Dry with Run Dry Protection

Same pump as the CPSS-IN-1 but with FDA Approved Run Dry Carbon Bearing Material.

• Inlet 1/2" MPT Outlet 1/2" MPT
• 316 STAINLESS STEEL (Front Housing), 316 Stainless Steel (Rear Housing), Teflon (Thrust Washer), CLEAR Silicone (O-Ring), Ryton/Teflon Impeller
• Max Flow 7 GPM 22.7 LPM
• Max Head 18.6 FT 4.1 M
• Power 1/20 HP (.04 HP) .029 KW
• Electrical 115V & 230V Models 50/60HZ
• Non-Submersible
• Motor AMP Rating - Full Load Amps (FLA)
• Motor Only: 1.7 Amps
• Motor and Pump: 1.9 Amps
• Can handle liquids of 250F
• Materials are FDA Food Compliant
• Components are UL Recognized

New Tri-Clover X-Dry Models

TRI-XCPSS-IN-1 (115v) | TRI-XCPSS-CI-1 (115v)

CHUGGER PUMP® TRI-XCPSS-CI-1 & TRI-XCPSS-CI-1 Tri Clover X-Dry Model with 1 1/2″ Molded Tri-Clamp Fittings & Run Dry Protection. Stainless Steel Center & Inline Inlet models. 115 Volt homebrew beer pump which is typically used to transfer hot and or cold liquids between brewing vessels.

Same pump as the CPSS-CI-1 & CPSS-IN-1 but with FDA Approved Run Dry Carbon Bearing Material & Tri-Clover Connections.

Molded Tri-Clamp Fittings & Run Dry Protection

Tri-Clover fittings are the perfect way to bring sanitary connections, found in commercial brewing applications, to your home brew setup. Wineries and Breweries use tri clamps to provide a sanitary connections between tubing and pipes.

• 1 1/2″ Molded (Not Welded) Tri-Clamp Connections
• Standard X-Dry Impeller with Non-Replaceable – M100 Bearing, Ceramic Washers, Silicon O-Ring, 55″ Cord with Plug.
• Run Dry Carbon Bearing
• Max Flow: 7 GPM 26.5 LPM
• Max Head: 18.6 FT 4.1 M
• Power: 1/20 HP (.04 HP) .029 KW
• Electrical: 115V 50/60HZ
• Non-Submersible
• Pump & Motor: 1.4 Amps
• Can handle liquids of 250° F
• Materials are FDA Food Compliant

The CHUGGER PUMP Mini MAX Series Home Brew Pumps are TEFC (Totally Enclosed Fan Cooled) motors rated at 1/8 HP (.125 HP) and feature Stainless Steel FDA Compliant Materials as well as a Polysulfone option. Our Inline pumps have 1/2" x 1/2" MPT connections, Center Inlet models have 3/4" x 1/2" MPT connections. These pumps are capable of transferring 7 GPM with a Max Head of 18.6 Feet. Components are UL recognized and you can easily toggle between 115V and 230V to meet your exact specifications. Comes with a 55" cord without plug.

Chugger-PP Inline Pump is a homebrew pump used to transfer hot and cold liquids to or from the brewing vessel. The Chugger-PP Inline Pump is comparable to the March 815-PL Pump. It is not self-priming so DO NOT RUN DRY!

• Inlet 1/2"" MPT Outlet 1/2""MPT
• Polysulfone (Front Housing), 316 Stainless Steel (Rear Housing), Teflon (Thrust Washer), CLEAR Silicone (O-Ring), POLYSULFONE (Impeller)
• Max Flow 7 GPM 22.7 LPM
• Max Head 18.6 FT 4.1 M
• Power 1/20 HP (.04 HP) .029 KW
• Electrical 115V 50/60HZ
• Non-Submersible
• Motor AMP Rating - Full Load Amps (FLA)
• Motor Only: 1.7 Amps
• Motor and Pump: 1.9 Amps
• Can handle liquids of 250F
• Materials are FDA Food Compliant
• Components are UL Recognized

CPPS-IN-2 (230V) Currently Out of Stock.

Chugger Stainless Steel, Center and Inline Replacement CHUGGER PUMP Heads for 115V and 230V Models & Chugger Max Poly and Stainless Steel Replacement Heads. New Tri Clover Pump Heads Available!

TC-XSSPH-IN

TC-XSSPH-CI

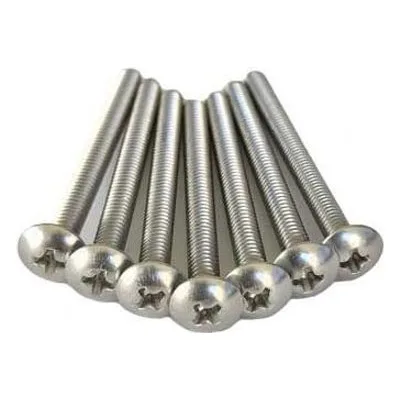

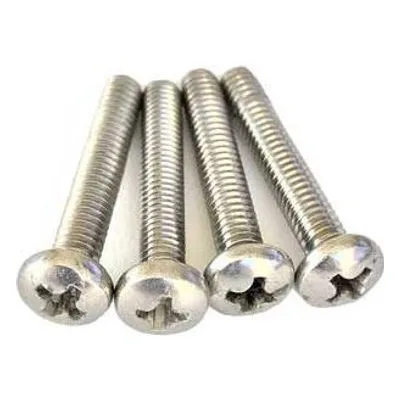

Chugger Pump Parts for Inline, Center and MAX Models - Screws, O-Rings, Washers, Impellers, Drive Magnets, Brackets, Covers, Shafts and Rear Housings.

Chuuger Pump Repair Kits for Chugger Max & Classic Models
